Product Description

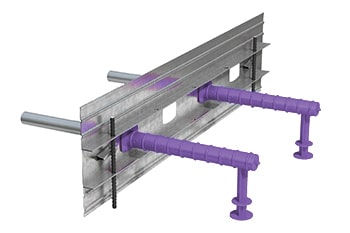

The Connolly Straight Up Contraction Joint provides a reliable continuous pour solution designed specifically for contraction joints in slab-on-ground applications.
With its precision straight profile, this contraction joint ensures effective load transfer exclusively through the dowels, delivering superior slab performance and durability.
Manufactured from roll-formed galvanised steel, Connolly Straight Up Contraction Joints act as a leave-in-place formwork system. Installation is quick and efficient using the patented wedge and peg fixing system, reducing labour time on site.
Available in standard 3m lengths, the Straight Up Contraction Joint is suitable for slab thicknesses ranging from 125mm to 200mm. Custom heights, lengths (up to 3m), and dowel configurations can also be tailored to meet specific project requirements.
Features
Designed to enable continuous concrete pours for slab-on-ground applications.
Available in three different profile heights to suit various slab thicknesses.
Innovative Twist-Fix feature ensures precise dowel alignment for smooth slab movement.
Patented wedge fixing system allows quick, accurate, and secure height adjustment.
Built with additional stiffening ribs for enhanced joint straightness and durability.
Protected with a galvanised coating to resist rust and extend product lifespan.
Can be used as a screeding guide, ensuring fast and accurate slab leveling.
Compatible with a wide range of cappings and rebate moulds for versatile applications.
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Description |
Straight up Contraction Joint System for 125mm slab |
| Pack Quantity | 10 Straight Up Contraction Joint per pack |
| Slab thickness [mm] | 125 |
| Profile heights [mm] | 123 |
| Length [m] | 3.00 |
| Dowel diameter [mm] | 16 |
| Dowel length [mm] | 450 |
| No of dowels / centres [mm] | 7 / 450 |
