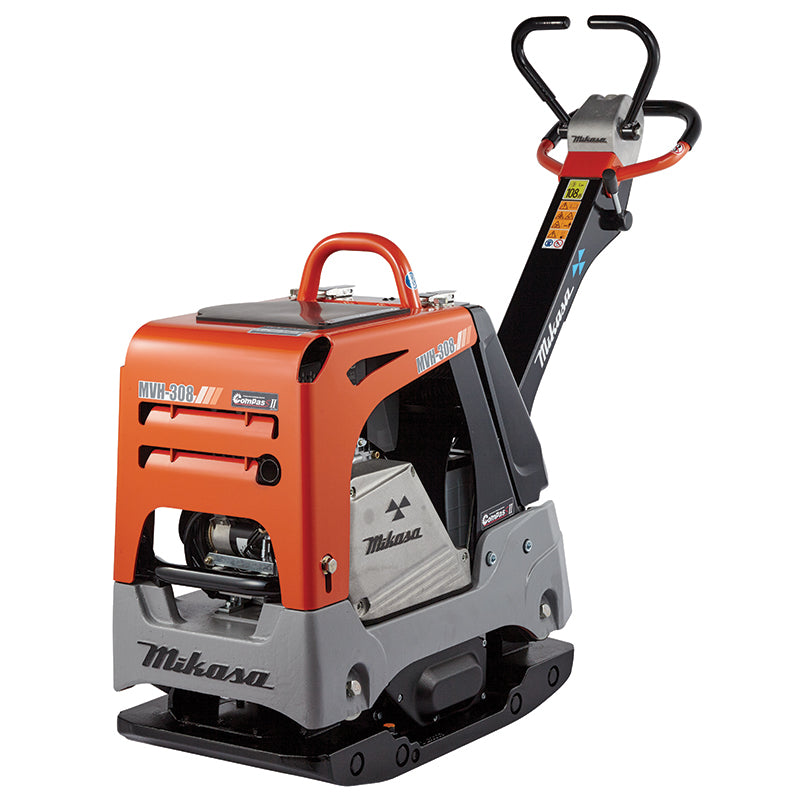

Mikasa Reversible Plate Compactor MVH-308DSY

Mikasa Reversible Plate Compactor MVH-308DSY

Regular price
Sale price
Regular price
Sold out
Unit price

Price excludes GST

Pay nothing for up to 60 days with Shift!
Get an additional 30 days FREE on top of our 30 days standard payment terms from interest and repayments.

Call Sales

(03) 9770 8491

Mon-Fri: 8AM - 5PM

Request A Quote

Product Description

The premium Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils.

The Mikasa Reversible Plate Compactor MVH-308DSY offers exceptional operator comfort and safety with features including a cyclonic air filtration system, seamless forward/reverse motions, engine tacho meter and anti-vibration and height adjustable handle. The robust and durable design provides superior build quality and excellent compaction performance and results.

The Mikasa Reversible Plate Compactor MVH-308DSY is ideal for civil and commercial construction projects, drainage and trench works.

- Engine hour meter and tachometer to efficiently manage service intervals and monitor rpm for optimum compaction performance
- The forward/reverse control lever comes with a built-in actuator for seamless and smooth transition between both forward and reverse motions
- Cyclonic air filtration system delivers superior air filtration to lengthen service internals and improve engine protection
- Anti-vibration handle provides low hand and arm vibration transfer to the operator
- Height adjustable handle for improved operator comfort
- Robust, full engine protection frame provides superior protection against engine damage and the hinge design simplifies maintenance by offering convenient access to all serviceable components
- The sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch component and V-belt
- Central lifting hook for easy and safe onsite handling
- Yanmar L70 diesel engine provides hassle-free operation, low fuel consumption and long-term reliability
- Removable extension plates to easily adjust the width of the plate to match the job requirements
- 3 Year Mikasa product warranty

- Model: MVH-308DSY
- Engine and power: Yanmar L70 6.7 hp
- Fuel type: Diesel
- Operating weight (without extension plates): 341 kg
- Operating weight (with extension plates): 361 kg
- Plate size (without extension plates) (wxl) : 445 mm x 860 mm
- Plate size (with extension plates) (wxl) : 595 mm x 860 mm
- Centrifugal force (max): 45 kN
- Vibration frequency: 4400 vpm
- Max travel speed*: 27 m/min
- Max gradeability: 35%
- Max compacted area: 963 m2/h
- Average HAV: 2.9 m/s2

* Travel speeds vary based on different soil conditions. Specifications published are based on average performance results.
