Product Description
CN445R3 - Made In Japan

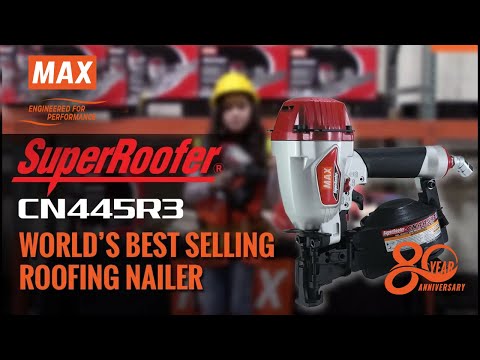

Roofing Coil Nailer up to 1-3/4"
Engineered by the manufacturer of the world’s first roofing nailer, MAX combines durability and performance in the safety equipped SuperRoofer®CN445R3. Equipped with a full round head driver blade allows operators to drive nails in flush for dependable holding power. To ensure the durability of the CN445R3, the tar resistant nose is designed to block tar build up to 8x longer than conventional tools. The patented self-cleaning end cap filter, traps foreign substances before they can enter the tool and safely ejects them when the air hose is disconnected. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can carry out safe operations.
- SELF-CLEANING FILTER FOR RELIABLE OPERATIONS
The patented, self-cleaning maintenance free end cap filter, captures foreign substances before they can enter the tool and automatically safely ejects them when the air hose is disconnected. - CONSISTENTLY AND ACCURATELY SHOOTS NAILS
The depth adjustment dial allows operators to effortlessly drive nails into hard materials, and also control depth of drive when fastening soft materials, for a consistently polished finish. - AVOID TRIP HAZARDS
A tangle free swivel fitting prevents tangling of the hose while keeping roofers safe from potential fall hazards. - EXTREME DRIVING POWER
Full round head driver blade for better holding power.
SPECIFICATIONS
WEIGHT
|
5.6 lbs
|
---|---|
DIMENSIONS
|
10 1/2"(H) x 4 1/2"(W) x 12 3/16"(L) |
MINIMUM OPERATION PRESSURE
|
70 PSI
|
MAXIMUM OPERATION PRESSURE
|
120 PSI
|
AIR INLET SIZE
|
1/4"
|
MAGAZINE CAPACITY
|
120
|
DEPTH CONTROL
|
Yes
|
JAM CLEARING
|
No
|
TRIGGER TYPE |
Rapid Fire Trigger |
AIR CONSUMPTION
(FT3/CYCLE) |
0.047
|
ACCESSORIES
|
Safety glasses
|
FASTENERS
COLLATION TYPE
|
Wire
|
---|---|
NAIL GUN ANGLE
|
15 |
STRIP OR COIL
|
Coil
|
COMPATIBLE FASTENER TYPES
|
Roofing coil nails
|
MINIMUM FASTENER SIZE
|
3/4"
|
MAXIMUM FASTENER SIZE
|
1-3/4"
|
MAXIMUM NAIL DIAMETER
|
.120"
|
Manuals
Applications
- Asphalt and fiberglass shingles
- Vinyl siding
- Lath wire to plywood
- Wooden box assembly
- Weight: 2.58 kg (5.7 lbs)
- Dimensions: 30.16cm (H) x 12.38cm (W) x 35.24cm (L)
- Min. Ties per Coil: 115
- Max. Ties per Coil: 205
- Applicable Wire Product/Ga: TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga
- Applicable Rebar Size: #5 x #5 - #9 x #10*
*Varies by rebar manufacturer - Ties per Charge: 4000
- Tie Speed: Approx. 1/2 sec
- Battery Charge Time: 65 mins full charge (50 mins 80%)
- Battery: JPL91440A
- Charger: JC925A
Request A Free Quote
Please fill out the below form for a nonobligatory written quote on a MAX Super Roofer Coil Nailer up to 1-3.4"(CN445R3).
