Product Description

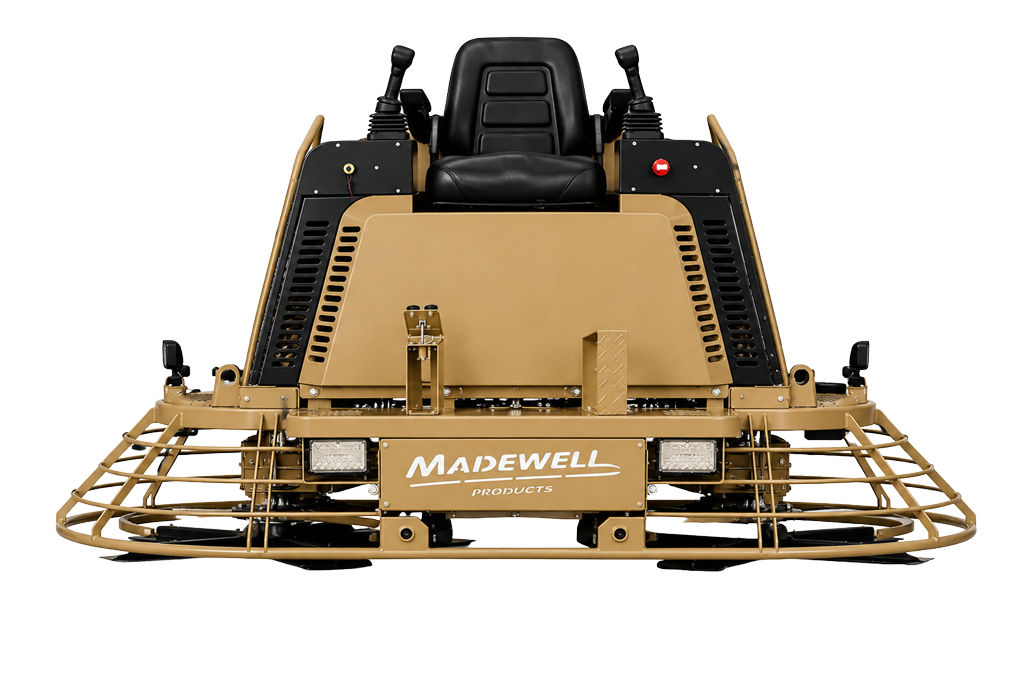

Introducing the Madewell MPT-1046
The Madewell MPT-1046 is a powerful 46" hydraulic ride-on power trowel engineered for high-demand concrete finishing tasks. Powered by a robust Yanmar 48HP diesel engine, it delivers smooth, reliable performance with hydraulic precision control. Ideal for large-scale industrial floors, this unit offers durability, operator comfort, and consistent surface finishing quality—making it the professional’s choice for concrete polishing and finishing excellence.
Features:
- Smooth & Efficient Operation: multi-blade design allows for consistent, even finishes on concrete surfaces.
- Hydraulic Drive System: Full hydrostatic steering and drive for smoother operation and reduced maintenance
- Heavy-Duty Frame: Built to withstand tough jobsite conditions
- Ergonomic Controls: User-friendly joystick or lever controls for responsive handling
- Comfortable Ride-On Design: Cushioned operator seat and accessible layout for reduced fatigue
- Blade Pitch Control: Adjustable blade pitch system for variable finish needs
- Application: Ideal for warehouses, commercial flooring, and large slab projects
Specifications:
| Additional Features | Details |
|---|---|
|
Model |
MPT-1046H |
| Engine / Speed |
Yanmar 4TNV88-BXDTYC / 3000 RPM |
| Horse Power | 49 HP (36.5 kW) |
| Fuel Type / Capacity |
Liquid-Cooled Diesel / 22 L |
| Steering Control System | Hydraulic Power |
| Transmission Mode / Operating Mode | CVT Clutch - Variable speed / Pilot Hydraulic Handle Control |
| Number of Blades | 10 |
| Number of Operating Light | 6 |
| Dimensions (mm) / Weight | 1430 H x 2585 L x 1280 W / 870 kg |
| Rotation Speed | 0 - 170 RPM |
| Finishing Blades | 455*150 mm |
| Combination Blades |
455*200 mm |
| Pan Float | 1175 mm |
