Product Description

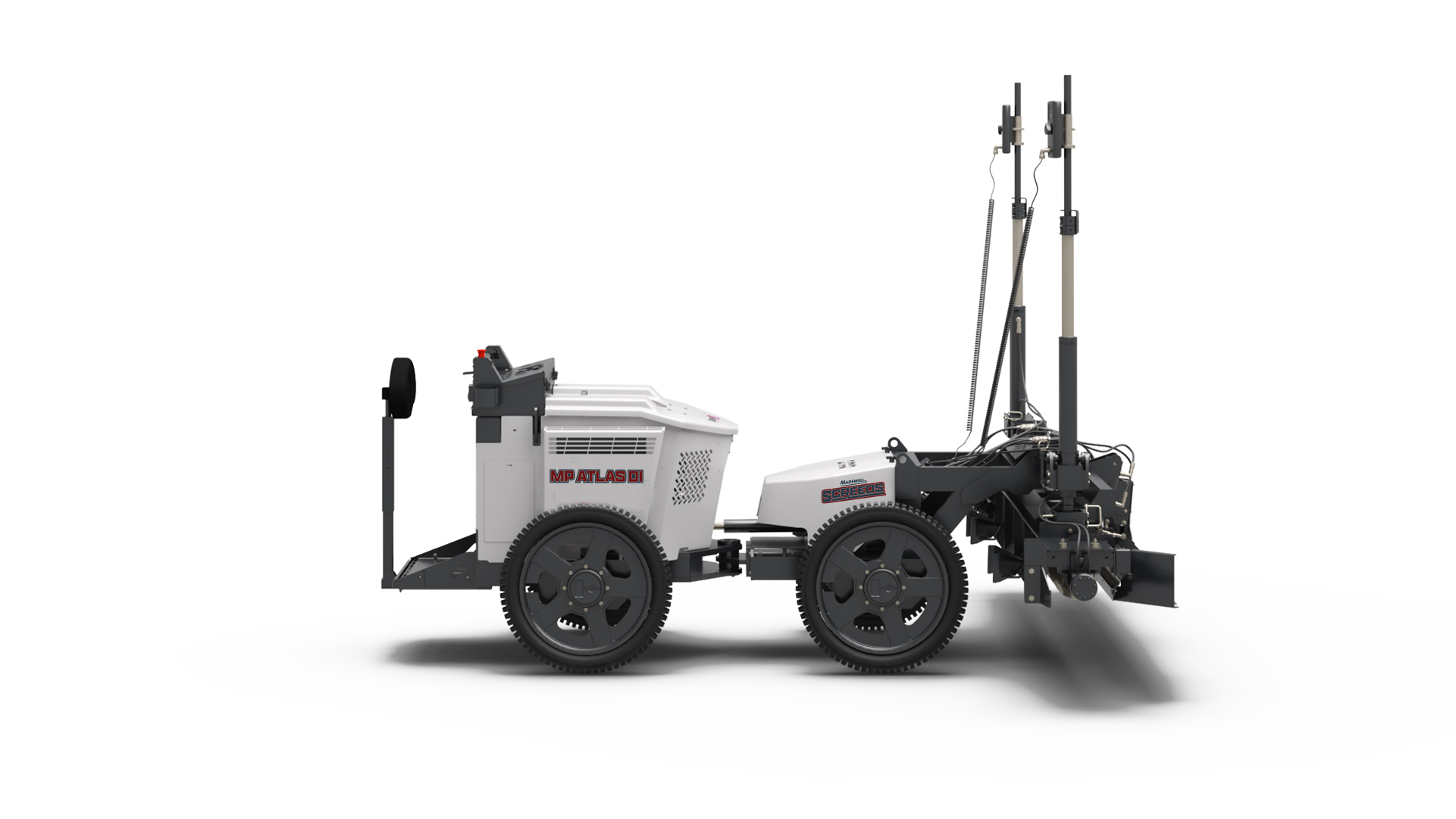

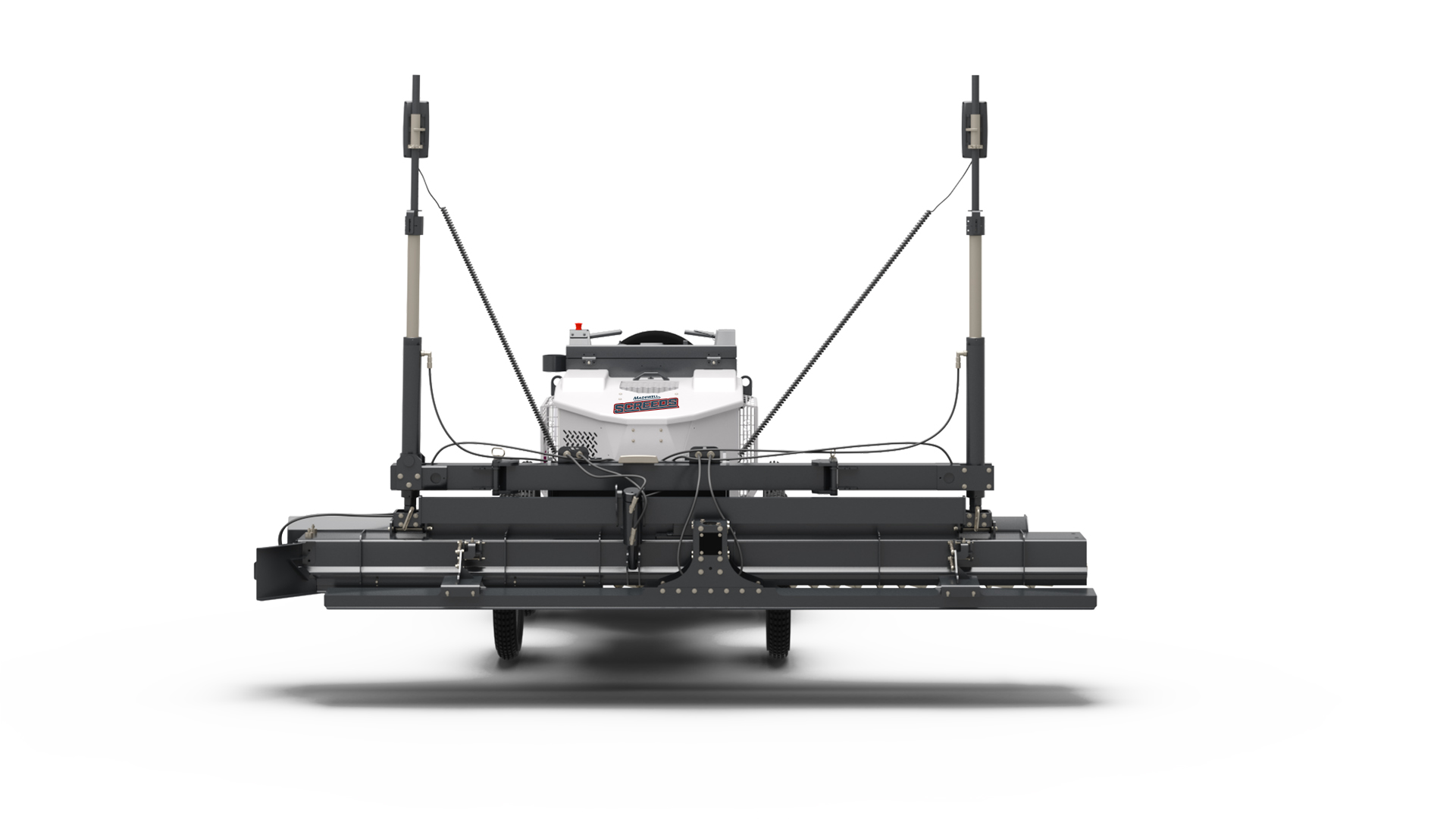

The MP ATLAS DI provides versatility and simplicity with increased power and productivity! Available with a fully automated self-leveling screed head, raking/fine grade head, this powerful machine has fewer switches and an easy-access hinged console, making any job comfortable for your operator. It has a foldable elevation beam that provides a narrower profile during transport with the added benefit of providing easy entry to job sites.
Inclusions:
- Complete spare parts and tool kit*
- 3 Days comprehensive on-site training
- High float tyres
- Tripod/Laser/trimble receivers
Features & Benefits:
- Applications: Flat floors, mesh, rebar, slab-on-deck & steel fibre concrete
- 3 Quick Pass Settings: Fast and efficient raking control
- Topcon 3D Compatible
- Column Block Protection
- SLS – Self Levelling System with Soft Landing
Specifications:
| Specifications | Details |
|---|---|
|
Model |
MP ATLAS DI |
| Weight | 1,840 lbs / 835kg |
| Dimensions | Height: 4’9”/1.5 m (transport mode) Length: 10’6”/3.2 m (transport mode) |
| Length | 10’6” / 3.2 m (transport mode) |
| Engine | 25 HP/18.4 kW Honda Gx690 |
| Self-Propelled | 4-Wheel Drive w/ Hydraulic Motors |
| Fuel Tank | Gas / 19L / 5.02 Gallons |
| Leveling Width | 3.0m/ 9.84ft |
| Vibrator Width | 120” |
| Vibration System | Hydraulic vibration |
| Quick Pass | 3 Quick Pass Setting |
| Trimble Receivers | Column Block Feature |
Request A Free Quote
Please fill out the below form for a nonobligatory written quote on a Madewell MP ATLAS DI Laser-Guided Screed.
