Product Description

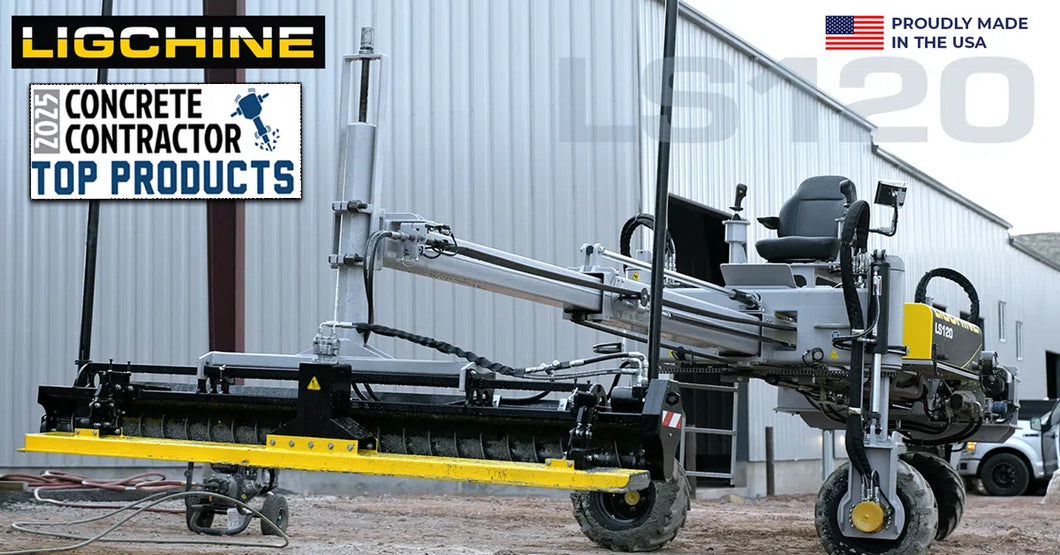

Introducing the Ligchine LS120. The LS120 is the culmination of 17 years of experience building Laser-Guided Screeds™. The LS120 is designed to offer a more affordable solution for smaller contractors seeking to own a Laser-Guided Screed. The machine leverages advanced frame leveling technology.
The LS120 is equipped with a highly maneuverable 3-wheel steering and is joysticks-operated. With an 8-foot screed head and a 16-foot boom reach, the LS120 delivers exceptional productivity across a variety of applications. All these features are achieved while keeping the size and weight of the machine compact, providing the ability to transport the machine with a ¾ ton truck and trailer.
Specifications:
- Width: 6′ 9″ | 2.01 m
- Length with Head: 16′ 8″ | 5.1 m
- Height: 7’2″ | 2.2 m
- Weight: 5,000 lbs. (2,268 kg)
- Fuel Tank: 8 gallons
- Screed Head: 8′ (2.4 m) High Performance
- Drive System (hydraulic): 3-Wheel Proportional Drive
- Coverage per Screed Pass: 120 sq ft (11.1 sq m)
- Engine: Honda IGX800 – 24.9HP (18.5kW) – Fuel Injected V-Twin
- Leveling Systems:
• 2D Laser Leveling (Standard) for Grade, Slope, Dual Slope – Topcon LS-B200
• 3D Systems (Optional) for Contoured concrete paving – 3D LPS robotic.
- Parallel to the Pour Driving Capable: Yes
- Machine Operation Control: Joysticks
Request A Free Quote
Please fill out the below form for a nonobligatory written quote on a Ligchine Laser-Guided Screed LS120.
