Danley WavePlate ArmourMate Joint System to suit 170-185mm Slab - 10mm DD @ 420cts
Danley WavePlate ArmourMate Joint System to suit 170-185mm Slab - 10mm DD @ 420cts
Danley WavePlate ArmourMate Joint System to suit 170-185mm Slab - 10mm DD @ 420cts
  • Load image into Gallery viewer, Danley WavePlate ArmourMate Joint System to suit 170-185mm Slab - 10mm DD @ 420cts
  • Load image into Gallery viewer, Danley WavePlate ArmourMate Joint System to suit 170-185mm Slab - 10mm DD @ 420cts
  • Load image into Gallery viewer, Danley WavePlate ArmourMate Joint System to suit 170-185mm Slab - 10mm DD @ 420cts

Danley WavePlate ArmourMate Joint System to suit 170-185mm Slab - 10mm DD @ 420cts

Regular price
$479.00
Sale price
$479.00
Regular price
Sold out
Unit price
per

Price excludes GST

Talk To Sales

(03) 9770 8491

Mon-Fri: 8AM - 5PM

Nick Davies
Danley Specialist
Nick has been working in and around concrete for 12+ years. Get in touch for questions or feedback on tools, techniques and materials.

Found a lower price somewhere else? We'll match it!*
Request a price match. *T&C's apply!

Pay nothing for up to 60 days with Shift!
Get an additional 30 days FREE on top of our 30 days standard payment terms from interest and repayments.





Product Description

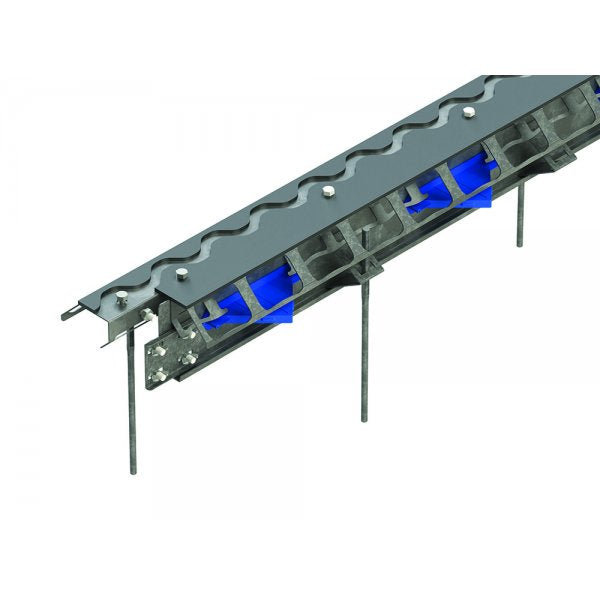

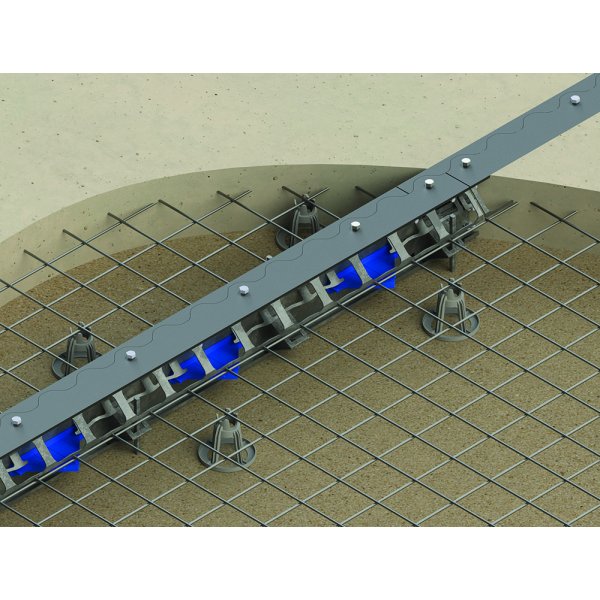

The innovative Danley™ WavePlate™ ArmourMate™ utilises disruptive joint technology to protect concrete edges and continuously supports passing material handling equipment (MHE), providing for a smooth, low impact transition across joints up to 20mm wide.

The offset design of the WavePlate ArmourMate improves joint performance and serviceability by preventing debris and other contaminants from filling the joint – aiding thermal expansion and protecting the load transfer mechanism - without the need of a filler or sealant. The continuous studding profile provides consistent, even anchorage in the concrete.

The full joint WavePlate ArmourMate is supplied in standard 2.1 metre lengths and is available in a range of profile heights for common slab thicknesses in Black or Galvanised finish.

WavePlate is also available in a Top Rail Assembly configuration. Intersection Nodes are available in both Black and Galvanised.

Features:
- Disruptive “Wave” Joint Technology provides the smoothest possible transition over joints.
- Fully supports MHE to 20mm joint width gap.
- Supplied in 2.1 metre lengths - Black and Galvanised.
- 100mm offset plates for seamless joining of lengths.
- WavePlate does not require the use of epoxy fillers or sealants.
- Supplied with Galvanised sacrificial separation plate. Replaces traditional timber form boards.
- Twist-n-Lock Stake Bracket system allows for fast set-up and levelling.
- Full Joint System available in 145mm, 165mm, 190mm and 245mm profile heights.
- Danley™ Diamond™ Dowels provide load transfer to the requirements of TR34 (4th Edition).
- WavePlate™ Node Intersections are available – Black and Galvanised.
- Top Assembly configuration is also available – Black and Galvanised. Subject to minimum order requirements.

Benefits:
- No Gaps! No Bumps! WavePlate™ provides a smooth, low-impact and quiet transition over the joint, ideal for LGV & automated MHE.
- Danley™ WavePlate™ ArmourMate™ is ideally suited for a range of industrial flooring designs including E-commerce Distribution Centres, Big Box Retail, Food Warehouses and Cold-Storage Facilities.
- Fully encapsulated joint system prevents debris and other contaminants from filling the joint, as well as mitigating the ingress of pests including vermin and rodents.
- Reduces concrete spalling and damage at the joints.
- Reduces the high maintenance, service & repair costs of MHE attributed to the impacts caused by conventional rail systems.
- Reduces floor maintenance and downtime costs over the life-cycle of the facility.
- WavePlate™ is tested and validated to a 25+ Year Design Life.
- Innovative Intersection Node is compact, lightweight and safe to carry around site.
- Top Rail Assembly is available for slab designs greater than 300mm in depth.
