Connolly 32Sx225 Flange Dowel Box with 400mm Galvanised Bar - 35 Pack

Product Description

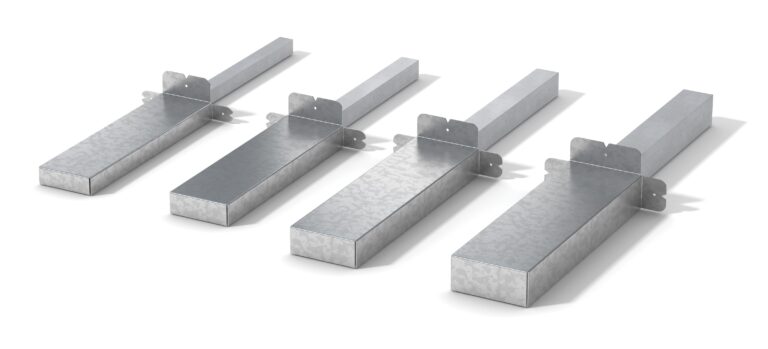

Connolly Flange Dowel Boxes are premium-grade galvanised steel sleeves engineered to provide reliable expansion, contraction, and lateral movement at construction joints in both standard and heavy-duty industrial concrete floor slabs. These dowel boxes ensure long-lasting performance and durability in demanding slab applications.

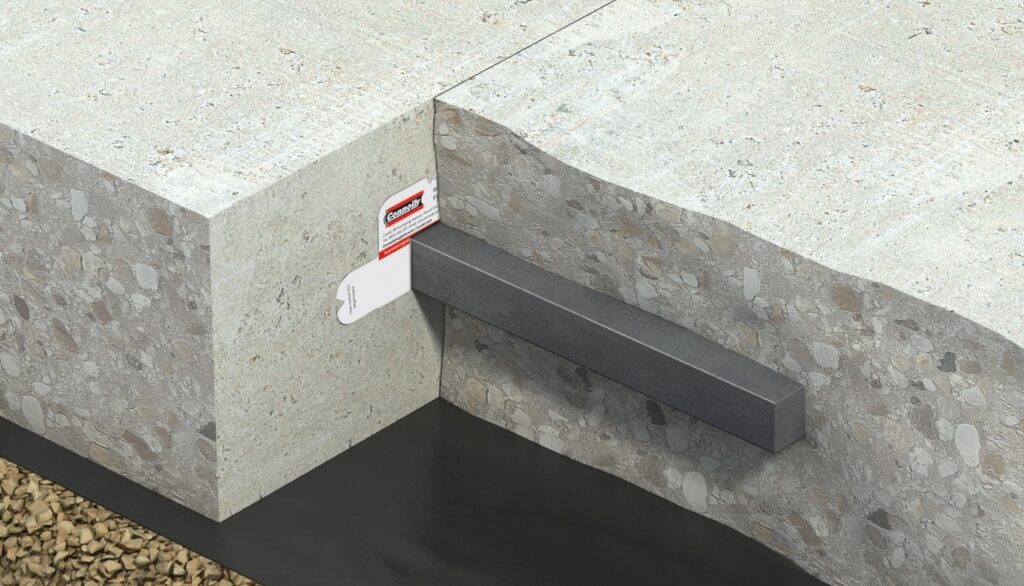

Specifically designed for use with Connolly square dowels, each flange box securely houses one half of the dowel to effectively de-bond it from the concrete. They are available in four standard sizes – 16mm, 20mm, 25mm, and 32mm – with custom dimensions also available to suit specific project requirements.

Featuring precision V-notches on all sides, Connolly Flange Dowel Boxes allow quick and accurate installation on both timber and steel formwork, delivering consistent dowel alignment. The wide flange design guarantees the dowel stays perfectly square to the formwork throughout the concrete pour, reducing errors and ensuring superior slab performance.

Features:

Provides large lateral movement capacity of +/- 20mm, ensuring superior joint performance in concrete slabs.

Designed with a 20mm expansion joint capacity for effective load transfer and movement control.

Precision V-notches allow fast, simple, and accurate installation on-site.

Enables quicker and more efficient dowel installation, reducing construction time.

Can be easily fixed to both timber and steel formwork, offering versatile application.

Ideal for construction joints, contraction joints, and expansion joints in industrial and commercial concrete slabs.

SPECIFICATIONS:
