Product Description

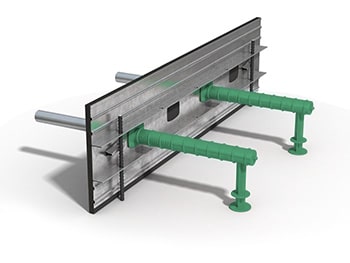

The Connolly 1 x 3m EXJ100 Expansion Joint System is a premium solution designed for durable and reliable concrete slab construction. This complete kit includes 1 x 3m EXJ100 expansion joint length, 9 x DBHDG12R x 300mm galvanized round dowels, 9 x EXJDS12R universal dowel sleeves, and 1 x PW1004 wedges and pegs pack.
Engineered for high performance, this system provides superior load transfer, effective movement control, and long-lasting slab stability. Ideal for commercial, industrial, and civil construction projects, it ensures precise alignment and efficient installation with reduced labour time.
The Connolly EXJ100 Expansion Joint Kit is trusted by builders, contractors, and concreters for delivering cost-effective performance and compliance with industry standards.
Kit Includes
1 x 3m EXJ100 length (Expansion Joint)
9 x DBHDG12Rx300mm (Dowel)
9 x EXJDS12R (Universal Dowel Sleeves)
1 x PW1004 (Wedges and Pegs)
Features
Complete Connolly EXJ100 Expansion Joint Kit for concrete slab construction
Includes 1 x 3m EXJ100 expansion joint length for reliable joint formation
9 x DBHDG12R galvanized round dowels (300mm) for superior load transfer
9 x EXJDS12R universal dowel sleeves to allow controlled slab movement
1 x PW1004 wedges and pegs pack for fast and secure installation
Designed to minimise slab cracking and ensure long-term stability
Provides accurate dowel alignment for unhindered expansion and contraction
Corrosion-resistant materials for durability in tough site conditions
Speeds up installation with a ready-to-use all-in-one package
Suitable for industrial, commercial, and civil construction applications
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Expansion Joint Length |
1 x 3m EXJ100 |
| Expansion Joint - Slab Thickness | 100mm |
| Dowels | 9 x DBHDG12R hot-dip galvanized round dowels |
| Dowel Size | 12mm diameter x 300mm length |
| Dowel Finish | Hot-dip galvanized for corrosion resistance |

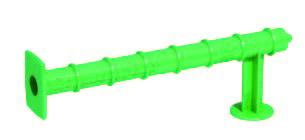

| Universal Dowel Sleeves | 9 x EXJDS12R |
| Sleeve Design | Provides free movement for expansion & contraction |
| Wedges & Pegs | 1 x PW1004 set (4 wedges and 4 pegs 350mm long) |
| Joint Type | Expansion joint for concrete slabs |
| Primary Function | Controls slab movement & relieves stress |
| Load Transfer | Ensures even load distribution across joints |
| Durability | Designed for long-term performance in tough site conditions |
| Installation | Quick and accurate with patented fixing system |
| Suitable Applications | Industrial floors, warehouses, pavements, commercial slabs, and civil projects |
