Product Description

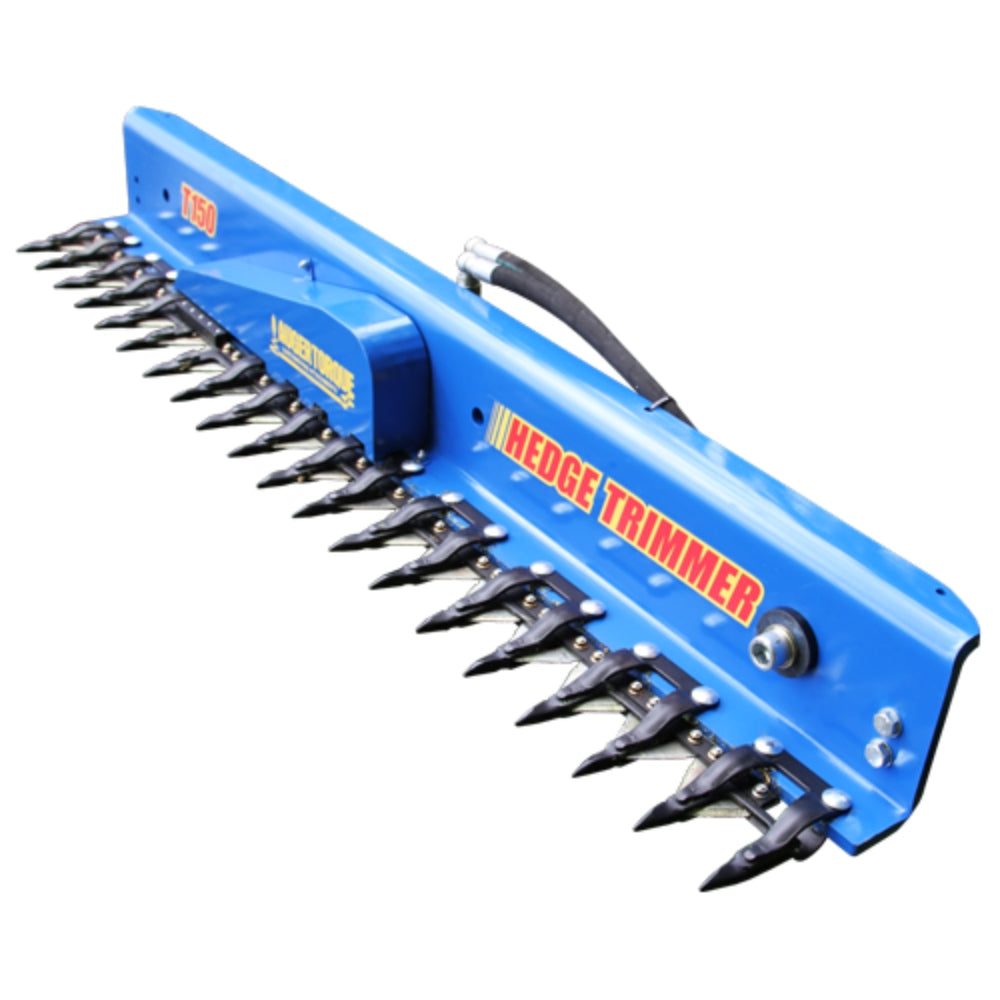

This product is an Offset Mount Assembly for the Auger Torque T150 Hedge Trimmer – including SSL Frame and Diverter Valve. It is an assembly only and does not include the full trimmer unit.
The Auger Torque Hedge Trimmer Offset Mount Assembly with Skid Steer Loader (SSL) Frame and Diverter Valve is a dedicated mounting solution designed to integrate with existing T150 hedge trimmer setups. Ideal for both excavators and skid steer loaders ranging from 1.5 to 8 tonnes, this assembly enhances trimming capability and versatility.
Important Note: This is a mount assembly only and does not include the hedge trimmer head, cutting bar, or motor. It is intended for users who already have the cutting attachment and need a replacement or additional mounting assembly.
Key Features:
- Includes Offset Mount, SSL Frame, and Diverter Valve
- SSL Frame enables quick switching between left and right mounting positions
- Offset mount allows for trimming at varied angles (horizontal to vertical)
- Hydraulic diverter included for efficient hose management and functionality
- Designed for use with the Auger Torque T150 Hedge Trimmer
Specifications:
| Additional Features | Details |
|---|---|
| Part Number |
51-8926-01-01 |
| Machine Compatibility | Excavators (1.5 – 8 tonnes), Skid Steer Loaders |
| Cutting Length | 1500 mm (extendable to 2500 mm with optional extension) |
| Maximum Branch Diameter | Up to 40 mm |
| Offset Mount Range | Up to 1300 mm |
| Mounting Frame | SSL Frame (Skid Steer Loader) |
| Cutting Teeth | Replaceable, heavy-duty teeth |
| Angle Adjustability | Horizontal to vertical trimming |
| Hydraulic Diverter Valve | Included for hydraulic flow management |
| Motor Options | Multiple hydraulic motor sizes available (depending on application) |
| Operating Pressure | Approx. 200 bar (depending on model and motor) |
| Flow Rate | Typically between 30 – 60 LPM (varies with configuration) |
| Weight (approx.) | Varies by setup – base unit ~120–150 kg (excluding frame and extensions) |
| Application | Hedge and brush trimming, tree line maintenance, landscaping |
