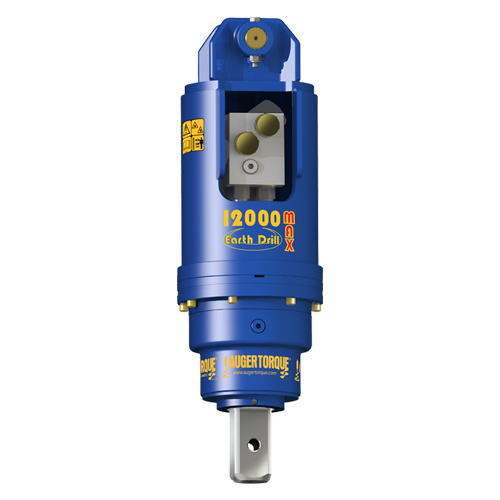

Auger Torque - Earth Drill 12000 MAX

Regular price
$6,536.00
Sale price
$6,536.00
Regular price
Sold out
Unit price
per

Price excludes GST

Talk To Sales

(03) 9770 8491

Mon-Fri: 8AM - 5PM

Mina Birt
Auger Torque Product Specialist
Mina will be your Auger Torque product specialist at Madewell Products. Get in touch for custom order or engineering queries.

Found a lower price somewhere else? We'll match it!*
Request a price match. *T&C's apply!

Pay nothing for up to 60 days with Shift!
Get an additional 30 days FREE on top of our 30 days standard payment terms from interest and repayments.





Product Description

Over engineered and built to last these products give you the versatility, peace of mind and quality you expect from Auger Torque products. A 2-Way Valve is an optional extra on this series of Earth Drills and enables you to convert a single acting hammer circuit into 2-way auxiliary flow. For the Earth Drill 12,000MAX and 15,000MAX an optional Pressure Relief Valve is also available. Safeguard your investment by protecting the hydraulic motor from backpressure and hydraulic pressure spikes. High quality hoses and couplers are standard with this series of Earth Drills (12,000MAX-15,000MAX do not include couplers), type and size need to be specified at the time of purchase.



Part Number:

21-4074106500S2601



FEATURES:

Auger Torque’s Earth Drills are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

Forged Hood Ears
Standard with all Earth Drills in areas that we know will take a lot of strain. All hood pins are locked for extra safety making it impossible for the hood to detach from your hitch.

Epicyclic Gearbox
Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

Non-Dislodgement Shaft
Unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers, a MUST-HAVE FEATURE for any safety conscious company.

High quality hydraulic motors

Auger Torque’s huge buying power means we work closely with high quality suppliers to develop the most reliable attachments available on the market today.

Hoses and Adaptors

All Earth Drills come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).



SPECIFICATIONS:

Additional Features Details
Carrier Weight

 8 - 13 t

Oil Pressure Range

 80 - 240 Bar

Torque Range 3998- 11995 Nm
Oil Flow Range 80 – 170 lpm
Speed Range  25 – 54 rpm
Hub Options 75mm Square
Height
930 mm
Width 290 mm
Weight 172 kg
Hitch Options

Single Pin Hitch
Double Pin Hitch
Cradle Hitch

Auger Range S6
Recommended Drilling Diameter Range 150 - 1000 mm
