Product Description
We have a range of wear and spare parts for your every need and application.

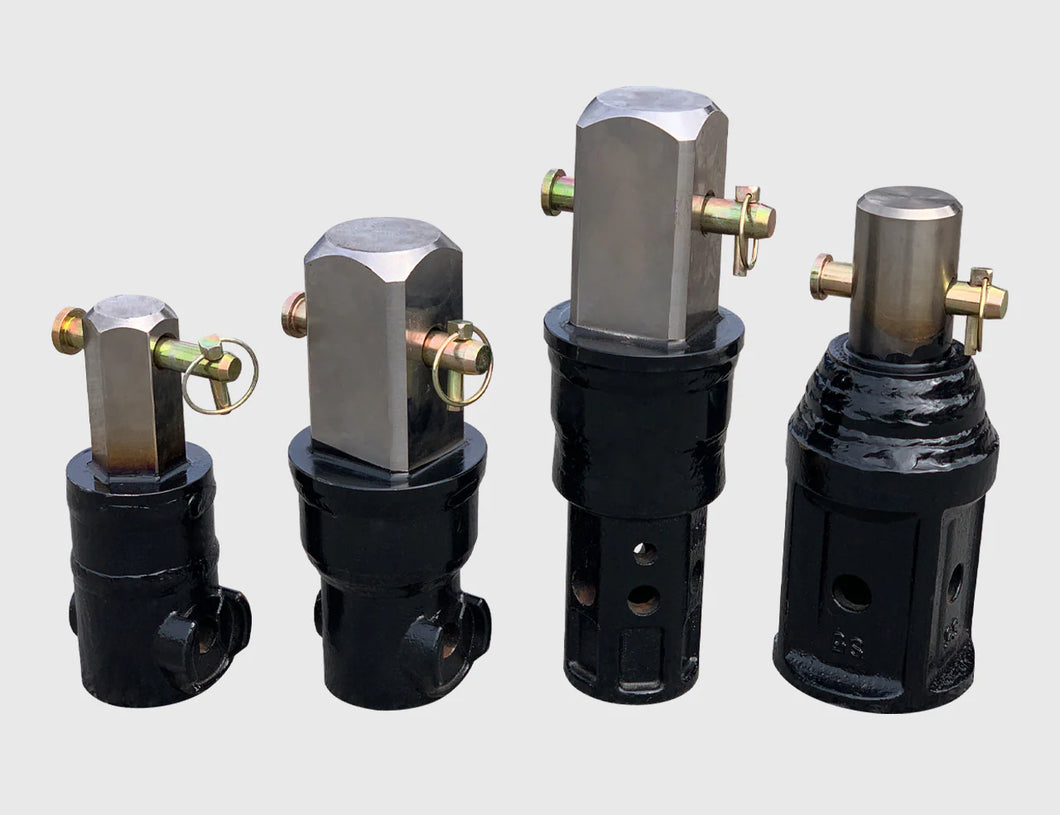

Auger Torque offers a range of Auger Shaft Adaptors designed to connect auger drives and auger bits with differing hub sizes and shaft configurations. These adaptors facilitate compatibility between various equipment setups, allowing for versatile application across different machinery and auger types. These adaptor facilitates compatibility between different auger systems, allowing for versatile equipment use across various applications.
These adaptors are essential for operators requiring compatibility between different auger drive outputs and auger bit inputs. By selecting the appropriate adaptor, users can efficiently match their existing equipment to new or varied auger attachments.
Key Features
Interchangeability
Connects augers and drives from different shaft series (e.g., S4 to S5, S6 to S8)
Heavy-Duty Build
Engineered to withstand extreme loads and continuous-duty operation
Easy Installation
Drop-in pin-style fitment allows for fast changes on-site
Precision Machined
Ensures tight tolerances and smooth torque transfer
Multi-Platform Use
Suitable for trenchers, mini loaders, excavators, skid steers, and telehandlers.
Part Number | Product |
---|---|
31-2002 | S2 50mm Rnd F - S4 65mm Rnd M |
31-5925 |
S4 65mm Rnd F - 1 1/8" Hex F |
31-4901 |
S4 65mm Rnd F - S4 2” Hex M |
31-4905 |
S4 65mm Rnd F - S5 57mm Sq M |
31-4907 |
S4 65mm Rnd F - S5 75mm Sq M |
31-4917 |
S4 65mm Rnd F – BC 65mm Rnd M |
31-4910 |
S4 65mm Rnd F – S4 2” Rnd M |
31-4911 |
S4 2” Rnd F - S4 65mm Rnd M |
31-4906 |
S4 2” Hex F - S4 65mm Rnd M |
31-5905 |
S5 2” Hex F - S5 57mm Sq M |
31-5906 |
S5 2” Hex F - S5 75mm Sq M |
31-5902 |
S5 57mm Sq F - S5 2” Hex M |
31-5901 |
S5 57mm Sq F - S4 65mm Rnd |
31-5903 |
S5 57mm Sq F - S5 75mm Sq M |
31-5917 |
S5 75mm Sq F - S5 2” Hex M |
31-5908 |
S5 75mm Sq F - S5 57mm Sq M |
31-5909 |
S5 75mm Sq F - S4 65mm Rnd M |
31-6906 |
S6 75mm Sq F - PA 110mm Sq M |
31-7910 |
PA 100mm Sq F - PA 110mm Sq M |
31-7915 |
PA 110mm Sq F - S6 75mm Sq M |
35-7917 |
PA 110mm Sq F - PA 100mm Sq M |
35-7110-130S-FAB |
150mm HEX F - 130mm Sq M |
Specifications:
Additional Features | Details |
---|---|
Material | High-strength alloy steel |
Finish | Corrosion-resistant black oxide or powder coating |
Drive Side (Female) | Varies by model: 50mm Round, 65mm Round, 75mm Square, 2" Hex, 2.5" Hex, 3" Hex, etc. |
Auger Side (Male) | Varies by model: 50mm Round, 65mm Round, 75mm Square, 130mm Square, etc. |
Compatibility |
Designed to adapt between different hub and shaft configurations (e.g., S2 to S4, S5 to S6) |
Mounting Type |
Pin & clip locking system (retention bolt optional on some heavy-duty models) |
Working Torque Range |
Matches relevant auger drive series (from 2,500Nm to 500,000Nm depending on the model) |
Length Range |
Typically between 150mm and 300mm (varies by adaptor type and size) |
Weight |
Approx. 2kg to 12kg (depending on shaft sizes and materials used) |
Applications |
Earth, rock, and hard rock augering; adaptable across skid steers, excavators, telehandlers, and more |
