Product Description

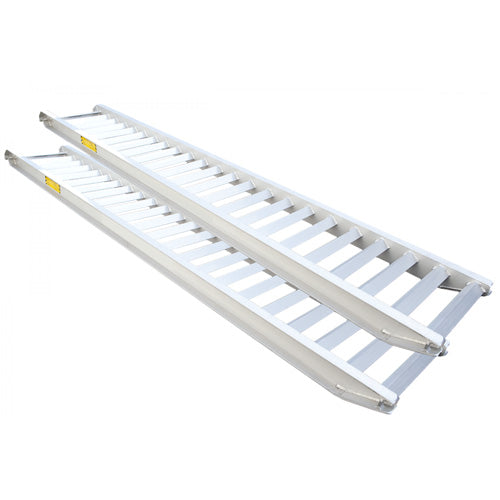

Auger Torque Aluminium Ramps with capacity ranging from 1.5 to 8 tonnes.
With carrying capacities ranging from 1.5 to 8 tonnes, our ramps are over-engineered to ensure they can safely accept steel and rubber tracks as well as pneumatic tyres. This means you no longer need to have individual ramps to cope with various means of traction. We use only the highest-grade alloy and unlike other companies we don’t skimp on quality, so when other ramps start to wear out, ours will still be going strong. All our ramps incorporate a design feature that prevents bottoming out when loading or unloading and all ramps are supplied with forged locking pins to ensure safe and secure attachment to the loading plate.
FEATURES
Carrying capacity from 1.5 to 8 Tonnes
Versatile and flexible
Suitable for Steel and rubber tracks as well as pneumatic tyres
Highest grade alloy
Multiple safety features
All models are suitable for Steel Tracks, Rubber Track and Pneumatic Tyres.
SPECIFICATIONS:
| Model | 1.5 TONNE (2.8m) |
3.0 TONNE (3.5m) |
4.0 TONNE (3.5m) |
|---|---|---|---|
| Part No. | 51-2909 | 51-2901 | 51-2902 |
| Track Width | 280mm | 325mm | 350mm |
| Max Bed Height | 1m | 1.2m | 1.2m |
| Weight (per ramp) | 24kg | 30kg | 36kg |
| Model | 4.0 TONNE (3.9m) |
4.5 TONNE (3.5m) |
4.5 TONNE (3.9m) |
|---|---|---|---|
| Part No. | 51-2904 | 51-2903 | 51-2907 |
| Track Width | 350mm | 425mm | 425mm |
| Max Bed Height | 1.4m | 1.2m | 1.4m |
| Weight (per ramp) | 40kg | 40kg | 47kg |
| Model | 5.0 TONNE (3.5m) |
6.0 TONNE (3.5m) |
8.0 TONNE (3.5m) |
|---|---|---|---|
| Part No. | 51-2905 | 51-2906 | 51-2908 |
| Track Width | 470mm | 500mm | 500mm |
| Max Bed Height | 1.2m | 1.2m | 1.2m |
| Weight (per ramp) | 49kg | 55kg | 68kg |
