Product Description
Rebar Tying Tool to 32mm x 29mm with 1.0 mm wire

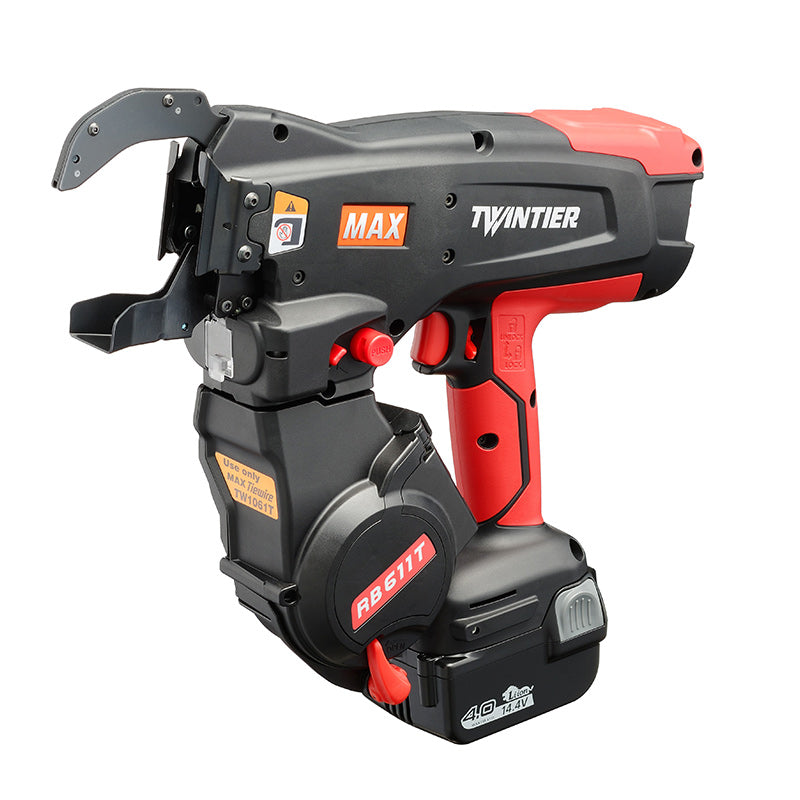

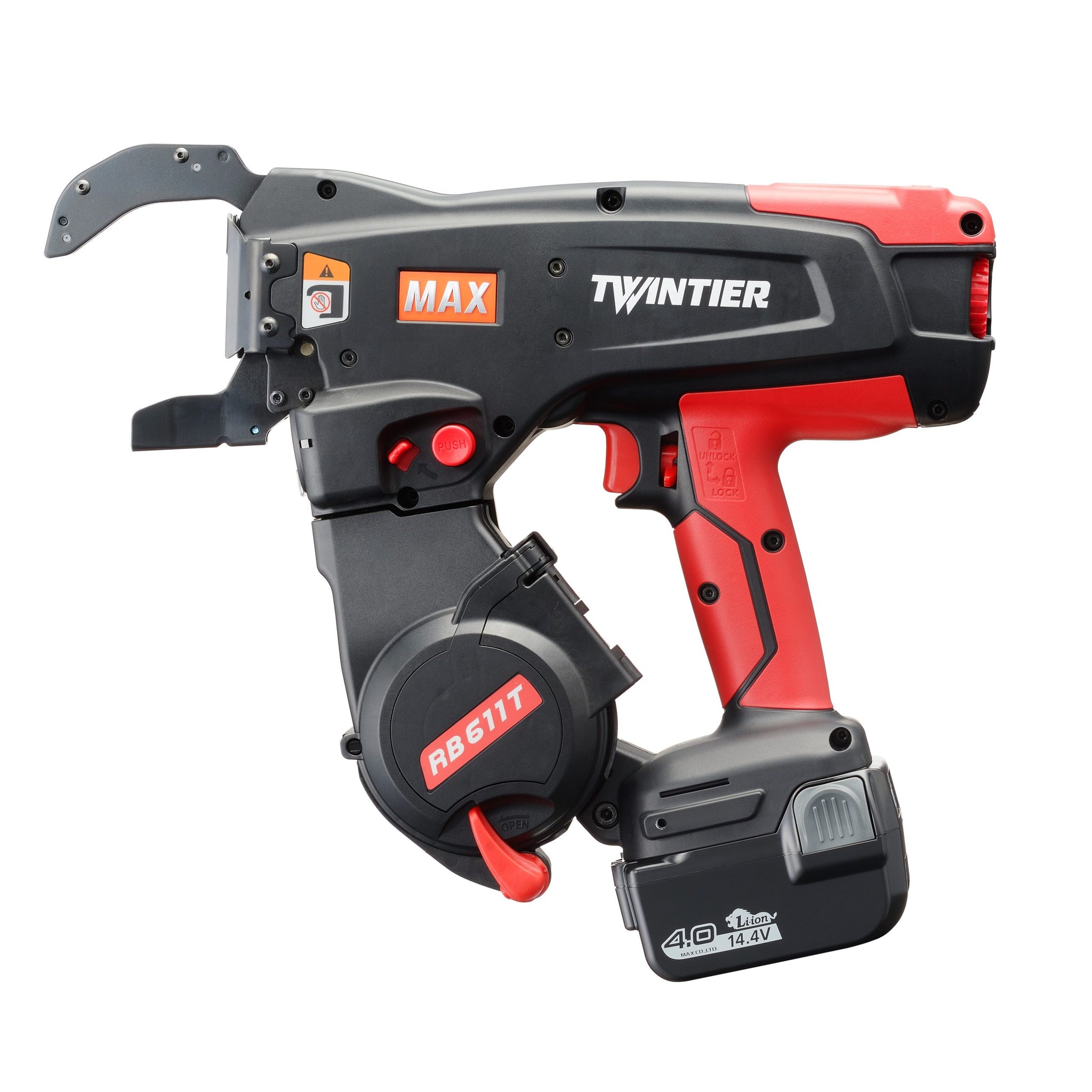

The RB611T TWINTIER is the 7th generation cordless rebar tying tool from MAX, engineered for larger rebar combinations up to 38mm x 16mm x 16mm. This high-performance rebar tie gun delivers unmatched speed, precision, and efficiency, making it the most advanced rebar tying machine in its class.
Applications
Precast Concrete Plants
Foundation Work
Bridge and Road Construction
Floor Decking Systems
Radiant Floor Heating
Multi-Story Building Floors
Features
DOUBLE THE TYING SPEED
Boost productivity with the Dual Wire Feeding Mechanism, which ties rebar from 16mm x 16mm to 38mm x 16mm x 16mm — making it ideal for a wide range of rebar sizes.
REDUCE MATERIAL COSTS
The Wire Pull Back Mechanism optimizes wire usage by dispensing the exact amount needed per tie, leading to significant wire savings on every job.
HIGH PERFORMANCE BATTERY & EFFICIENCY
With the ability to tie up to 5,000 ties per battery charge, and 140–205 ties per wire coil, the RB611T delivers extended runtime and fewer reloads, even on 13mm x 13mm rebar grids.
COMPACT, LOW-PROFILE TIE DESIGN
The Patented Wire Bending Mechanism creates shorter tie heights, requiring less concrete cover — perfect for tight concrete pours and reducing material usage.
EXPANDED TYING CAPACITY
The large jaw design accommodates rebar configurations up to 32mm x 29mm, offering superior flexibility on larger projects.
SLIM ARM FOR TIGHT SPACES
A slim, ergonomic arm allows easy tying at a 45-degree angle, ideal for restricted or hard-to-reach areas.
FAST WIRE LOADING
The Easy Push Gear Release system enables smooth gear operation and quick wire feeding, streamlining tool loading and minimizing downtime.
Specifications:
| Additional Features | Details |
|---|---|
| WEIGHT |
2.5 kg |
| DIMENSIONS |
300mm(H) x 120mm(W) x 352mm(L) |
| MINIMUM TIES PER COIL |
140 |
| MAXIMUM TIES PER COIL |
205 |
| APPLICABLE WIRE PRODUCT/GA |
TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga |
| APPLICABLE REBAR SIZE |
16 x 16 - 32 x 29, up to 38 x 16 x 16, 25 x 25 x 16 x 16(Unit: mm) |
| TIES PER CHARGE |
5000 |
| TIE SPEED |
0.7 sec |
| TIE WRAPS |
1 wrap with double wire |
| BATTERY CHARGE TIME |
80% charge in 60 minutes, 100% fully charge 80 minuets |
| BATTERY |
JPL91440A x 2 pieces |
| CHARGER |
JC925A x 1 piece |
