Product Description

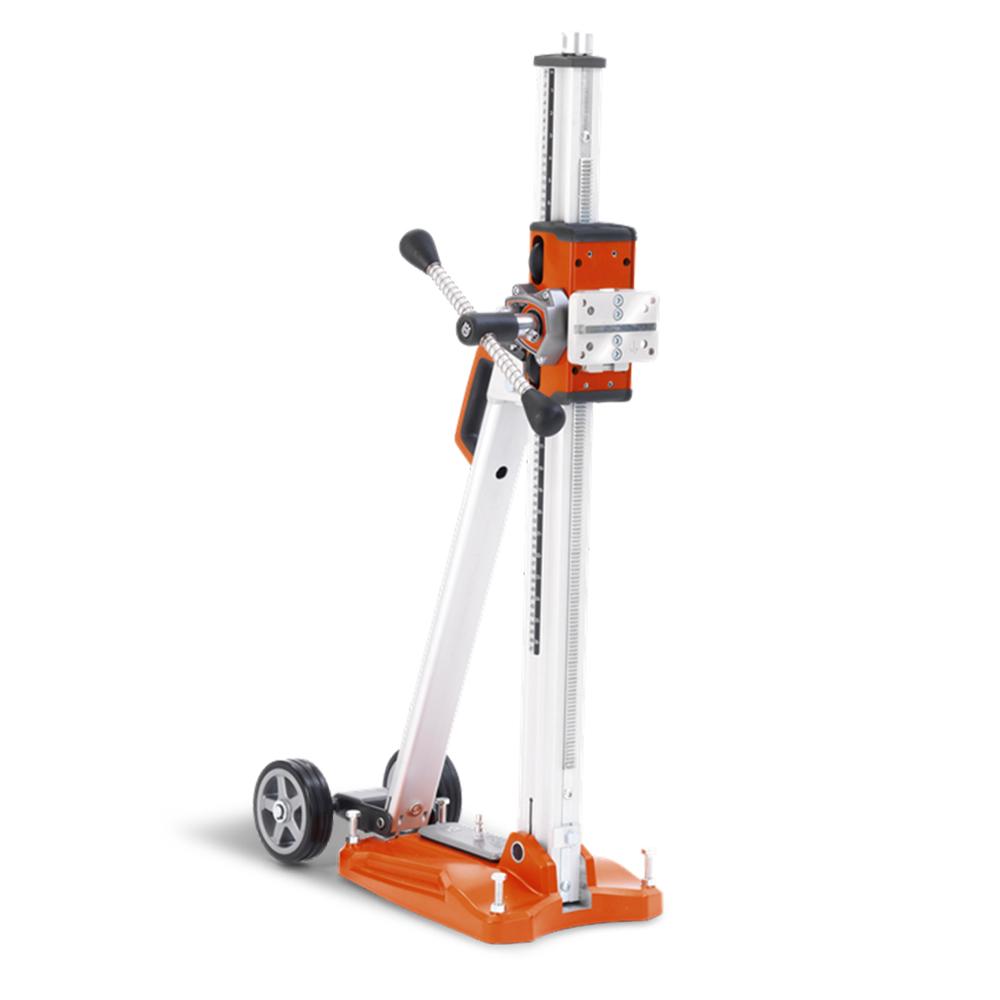

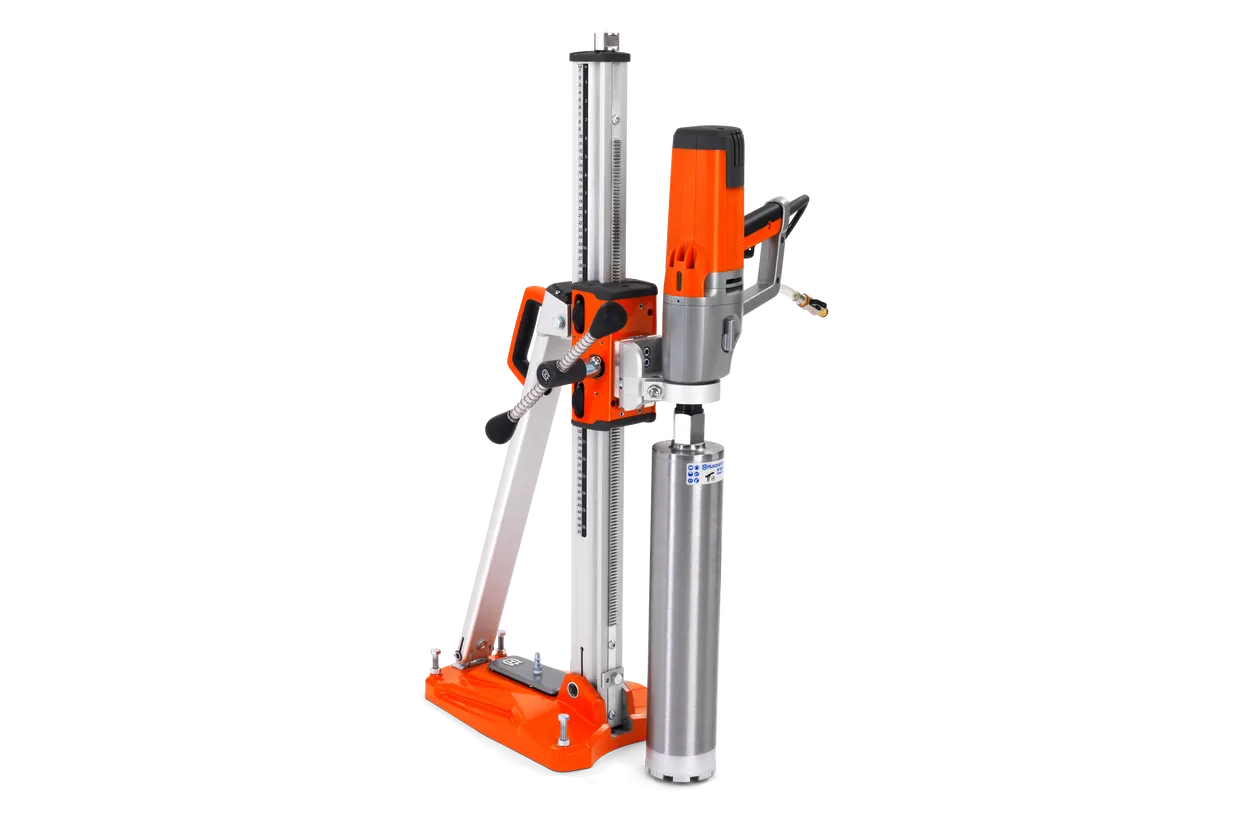

DS 250 is a mid-sized drill stand. This lightweight stand made of aluminium has a combined base plate to enable both anchoring and vacuum. An ideal choice for core drilling applications up to 250 mm diameter. Suitable for stitch and angle drilling for ventilation and plumbing.
Features
Straight and accurate drilling
Angle drilling
Optimum cranking speed
Vertical drilling
User-friendly base plate
Quick mounting of drill motor
Product Number: 966 82 73‑01
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Drill bit diameter, max |
250 mm |
| Drill bit length with recommended drill motor, max | 584/700 mm |
| Column's angling | 0-60º |
| Column installation | Tiltable |
| Travel length, max | 685 mm |
| Product size length | 409 mm |
| Product size width | 266 mm |
| Product size height | 1,045 mm |
| Weight (complete product w/o side packed articles) | 16 kg |
| Packaging length | 1,150 mm |
| Packaging width | 530 mm |
| Packaging height | 330 mm |
| Article gross weight | 22,000 g |
