Product Description

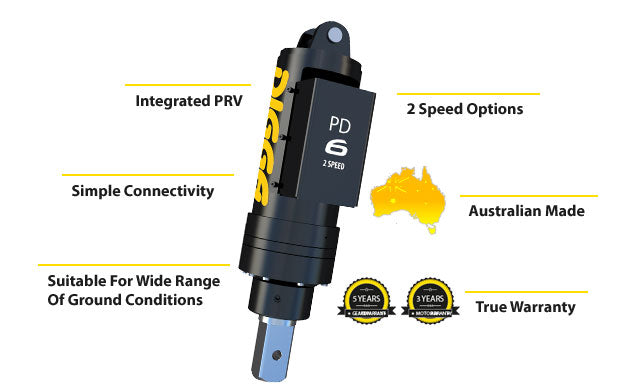

Digga’s 2-speed drilling auger drives are expertly engineered for standard flow machines, offering unmatched versatility across a wide range of drilling applications. These auger drives feature a high-speed, low-torque mode for smaller, fast-turning auger jobs that demand extra RPM, and a low-speed, high-torque mode for efficiently powering through larger diameter holes. With this dual-function system, you get the performance of two drive units in one compact and efficient design.
Ideal for a variety of machinery, Digga’s 2-speed auger drives are compatible with excavators, skid steer loaders, truck cranes, wheeled loaders, and backhoes operating with hydraulic flows between 20 and 75 lpm. This makes them the perfect choice for contractors seeking powerful, reliable, and flexible drilling performance on any job site.
Features
Enhanced Motor Design & Dual-Speed Performance
Features two operational speeds for maximum versatility.
Low Speed, High Torque
Ideal for drilling large-diameter holes.
High Speed, Low Torque
Perfect for smaller holes requiring higher RPM.
Versatile Ground Compatibility
Performs efficiently across all ground types including soft loose soils, compact hard soils, and rocky terrains.
Integrated Pressure Relief Valve (PRV)
Protects the system and ensures consistent performance under variable pressure conditions.
Easy Electrical Connection
Equipped with a 12V or 24V coil for straightforward installation just connect and operate.
Optional Control Accessories
Choose from pre-wired joystick switches, floor-mounted switches, or cigarette plug connections for added convenience.
Low Maintenance Design
Backed by a 5-year gearbox warranty and 3-year motor warranty for long-term reliability and peace of mind.
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Recommended Flow |
20-75 lpm |
| Max Torque | 4664 Nm |
| Motor | 2K Bell EATON |
| Pressure Valve Fitted | Included |
| Energy Control Valve | N / A |
| Case Drain Required | Optional |
| Max Pressure | Do not exceed 200 bar @ 76 lpm |
| Max Flow | Do not exceed 76 lpm @ 200 bar |
| Max Continuous Power | Do not exceed 25 Kw (34 hp) |
| Overall Length | 877 mm |
| Diameter | 240 mm |
| Weight (no frame / hitch) | 104 Kg |
| Std Output Shaft | 75 mm Square |
| Swing Control | Optional |
| Diggalign | Optional |
| Rec Auger | 4 Series / 6 Series |
| Max Auger Dia Clay / Shale | 600 mm |
| Max Auger Dia Earth | 900 mm |
Request A Free Quote
Please fill out the below form for a nonobligatory written quote on a Digga PDT6 2 Speed Auger Drive with Halo - 75mm Square Shaft with 2.2m Hoses.
