Product Description

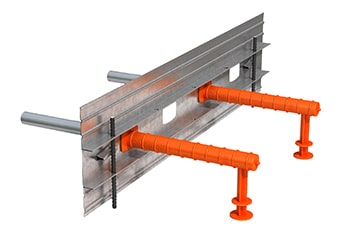

The Connolly 3m SUCJ200 Straight Up Contraction Joint Kit is a premium concrete jointing solution designed for large-scale slab construction. This complete set includes 1x 3m SUCJ200 Contraction Joint, 7x BHDG24R 450mm dowels, 7x EXJDS24R universal dowel sleeves, and 1x PW1504 wedges and pegs, providing everything required for accurate installation and long-lasting performance. Built to maintain slab integrity, the SUCJ200 system ensures controlled cracking, smooth slab movement, and superior load transfer. Its galvanized steel finish offers excellent corrosion resistance, making it ideal for industrial, commercial, and infrastructure projects. With easy installation and reliable performance, this contraction joint system reduces labor time and enhances durability, delivering a professional finish every time.
Kit Includes
1 x 3m SUCJ200 length (Straight Up Contraction Joint)
7 x DBHDG24R 450mm (Dowel)

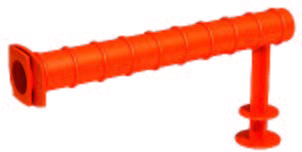

7 x EXJDS24R (Universal Dowel Sleeves)
1 x PW1504 (Wedges and Pegs)
Features
Complete contraction joint kit for efficient slab construction
Includes 1x 3m SUCJ200 joint, 7x 450mm dowels, 7x dowel sleeves & wedges/pegs
Designed to control cracking and maintain slab integrity
Ensures smooth slab movement with secure dowel alignment
Galvanised coating for superior corrosion resistance and durability
Easy-to-install system reduces on-site labor and setup time
Patented wedge mechanism for fast and accurate height adjustment
Provides excellent load transfer across concrete slabs
Suitable for heavy-duty industrial, commercial, and infrastructure applications
Engineered for consistent performance in large-scale concrete pours
SPECIFICATIONS:
Additional Features | Details |
---|---|
Joint Profile Height |
200mm |
Joint Length | 3.0m |
Dowel Type | DBHDG24R Hot-dip galvanised dowel |
Dowel Size | 24mm diameter x 450mm length |
Dowel Sleeves | 7 x EXJDS24R Universal Sleeves |
Wedges & Pegs set | 1 x PW1504 Set (4 Wedges & 4 Pegs 390mm long) |
Material | Galvanised Steel |
Coating | Hot-dip galvanised (corrosion resistant) |
Load Transfer | Ensures smooth slab movement & alignment |
Installation | Quick-fit system with wedge adjustment |
Typical Applications | Industrial floors, commercial slabs, warehouses, infrastructure projects |
Durability | Heavy-duty design for long service life |
