Product Description

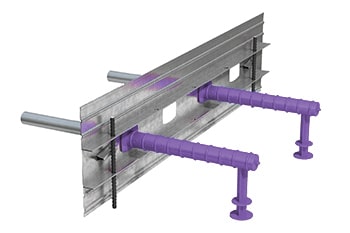

The Connolly 1x 3m SUCJ150 Straight Up Contraction Joint kit is a high-quality concrete jointing solution designed to deliver superior slab performance and durability. This complete set includes a 3m SUCJ150 Straight Up Contraction Joint, 7x DBHDG16R 450mm dowels, 7x EXJDS16 universal dowel sleeves, and 1x PW1004 wedges and pegs. Engineered for accuracy and ease of installation, this contraction joint system ensures controlled cracking, smooth slab movement, and long-lasting structural integrity.
Ideal for commercial, industrial, and large-scale concrete flooring projects, Connolly’s contraction joints provide a patented wedge fixing mechanism for precise height adjustment, galvanised dowels for corrosion resistance, and universal sleeves for easy alignment. With its simple yet robust design, this jointing kit reduces installation time while ensuring maximum performance in heavy-duty applications.
Choose the Connolly SUCJ150 Straight Up Contraction Joint system for reliable concrete slab construction that meets industry standards for strength, flexibility, and durability.
Kit Includes
1 x 3m SUCJ150 length (Straight Up Contraction Joint)
7 x DBHDG16R 450mm (Dowel)
7 x EXJDS16R (Universal Dowel Sleeves)
1 x PW1004 (Wedges and Pegs)
Features
Provides controlled concrete slab cracking for long-lasting performance
Patented wedge fixing mechanism for fast and accurate height adjustment
Universal dowel sleeves allow easy alignment and smooth slab movement
450mm galvanised dowels offer corrosion resistance and superior strength
Ensures precise joint positioning during continuous concrete pours
Additional stiffening ribs maintain straighter joint lines
Quick installation, reducing labour and project time
Suitable for industrial, commercial, and large-scale concrete slabs
Designed for heavy-duty applications with long-term durability
SPECIFICATIONS:
Additional Features | Details |
---|---|
Joint Height |
150mm – designed for 150mm slab thickness |
Dowels | 7x DBHDG16R – 16mm diameter, 450mm long |
Dowel Finish | Hot-dip galvanised for corrosion resistance |
Dowel Sleeves | 7x EXJDS16 Universal Dowel Sleeves – ensures smooth slab movement |
Wedges & Pegs | 1x PW1004 set – (4 Wedges & 4 Pegs 350mm long) |
Fixing Mechanism | Quick-fit wedge and peg system |
Alignment Feature | Twist-fix and universal sleeve system for precise dowel alignment |
Structural Benefit | Controls shrinkage cracking and slab movement |
Rib Design | Additional stiffening ribs for straighter joints |
Installation | Quick, accurate, and reduces labour time |
Corrosion Protection | Galvanised steel components for long service life |
Durability | Heavy-duty, long-lasting, designed for continuous pours |
