Product Description

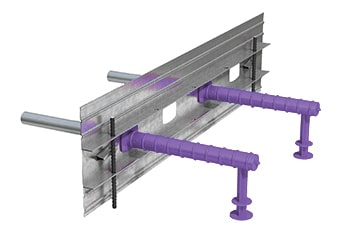

The Connolly 1x 3m SUCJ125 Straight Up Contraction Joint Kit is a premium concrete jointing solution designed for reliable slab contraction and movement control in industrial, commercial, and civil construction projects. This complete set includes a 3m SUCJ125 contraction joint, 7x 16mm x 450mm galvanised dowels (DBHDG16R), 7x universal dowel sleeves (EXJDS16), and 1x pack of wedges and pegs (PW1004) for easy installation.
Engineered for strength and durability, this Connolly contraction joint system ensures precise slab alignment, reduces cracking risks, and delivers long-lasting performance in heavy-duty concrete applications. The galvanised coating provides superior corrosion protection, while the patented wedge and peg system allows fast and accurate installation on-site.
Ideal for concrete slabs, warehouses, pavements, and industrial flooring, this Connolly contraction joint kit provides a cost-effective, time-saving, and professional-grade jointing solution trusted by contractors across Australia.
Kit Includes
1 x 3m SUCJ125 length (Straight Up Contraction Joint)
7 x DBHDG16R 450mm (Dowel)
7 x EXJDS16R (Universal Dowel Sleeves)
1 x PW1004 (Wedges and Pegs)
Features
Complete jointing system – includes SUCJ125 contraction joint, dowels, dowel sleeves, wedges & pegs.
3m SUCJ125 Straight Up Contraction Joint – ensures precise slab contraction and movement control.
7x Galvanised Dowels (DBHDG16R, 16mm x 450mm) – provide reliable load transfer across joints.
7x Universal Dowel Sleeves (EXJDS16) – enable unhindered slab movement with accurate alignment.
Wedges & Pegs (PW1004) – patented fixing mechanism for quick and secure installation.
Durable galvanised finish – protects against corrosion for long service life.
Prevents concrete slab cracking – maintains joint integrity in heavy-duty applications.
Easy installation system – reduces labour time and increases site efficiency.
Heavy-duty performance – designed for warehouses, pavements, and industrial floors.
Trusted Connolly quality – engineered for strength, reliability, and long-lasting results.
SPECIFICATIONS:
Additional Features | Details |
---|---|
Contraction Joint |
Connolly SUCJ125 Straight Up Contraction Joint |
Joint Length | 3m |
Joint Height | 125mm |
Dowel Type | 7x DBHDG16R – hot-dip galvanised round dowels |
Dowel Size | 16mm diameter x 450mm length |
Dowel Sleeves | 7x EXJDS16 Universal Dowel Sleeves |
Wedges & Pegs set | 4 Wedges & 4 Pegs 350mm long (PW1004) |
Coating | Galvanised finish for corrosion protection |
Application | Industrial floors, pavements, warehouses, commercial slabs |
Function | Controls concrete contraction, reduces cracking, and ensures load transfer |
Installation | Fast and accurate with twist-fix and wedge fixing mechanism |
