Product Description
Rebar Tying Tool up to 22mm x 22mm with 1.0 mm wire

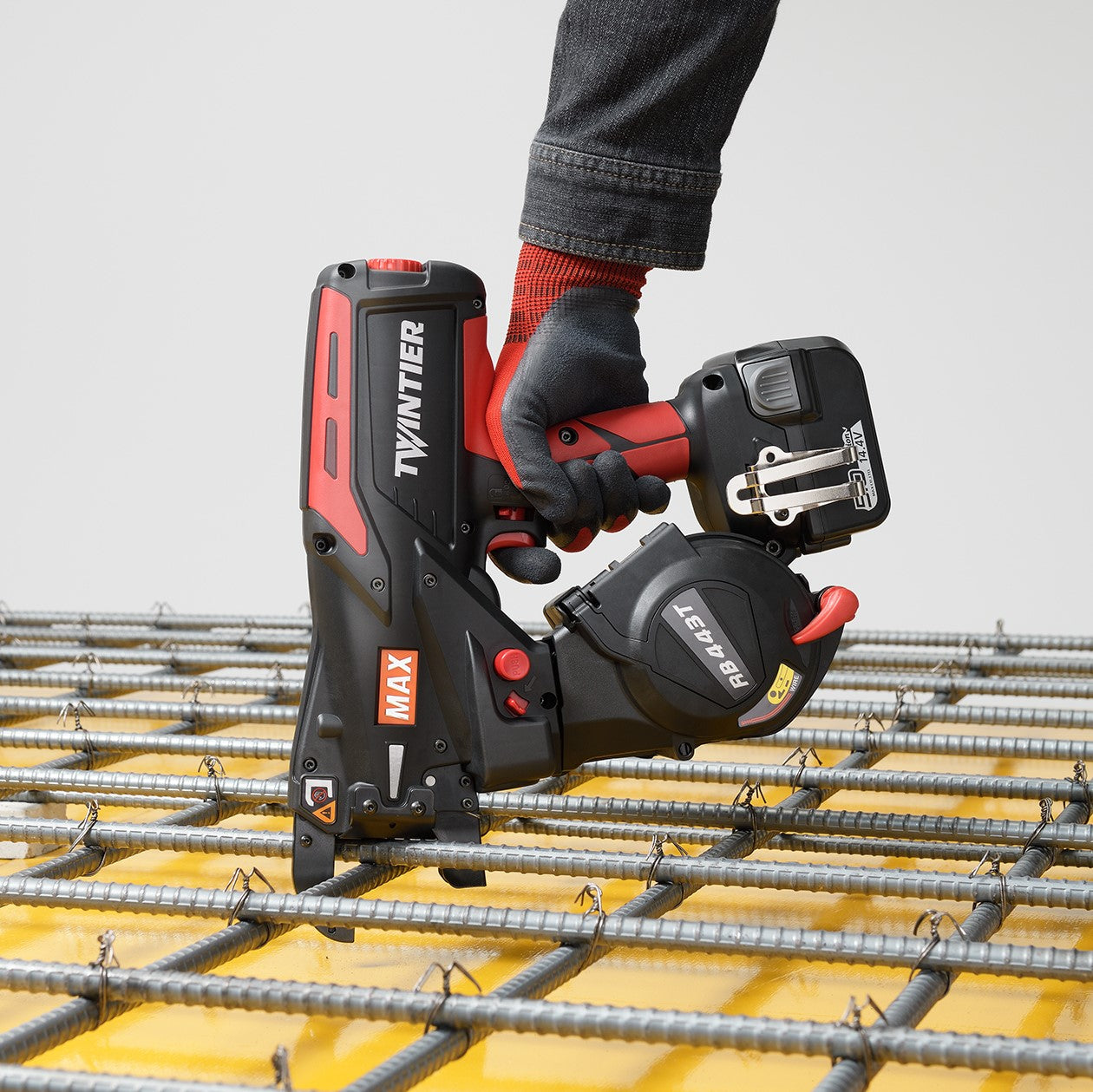

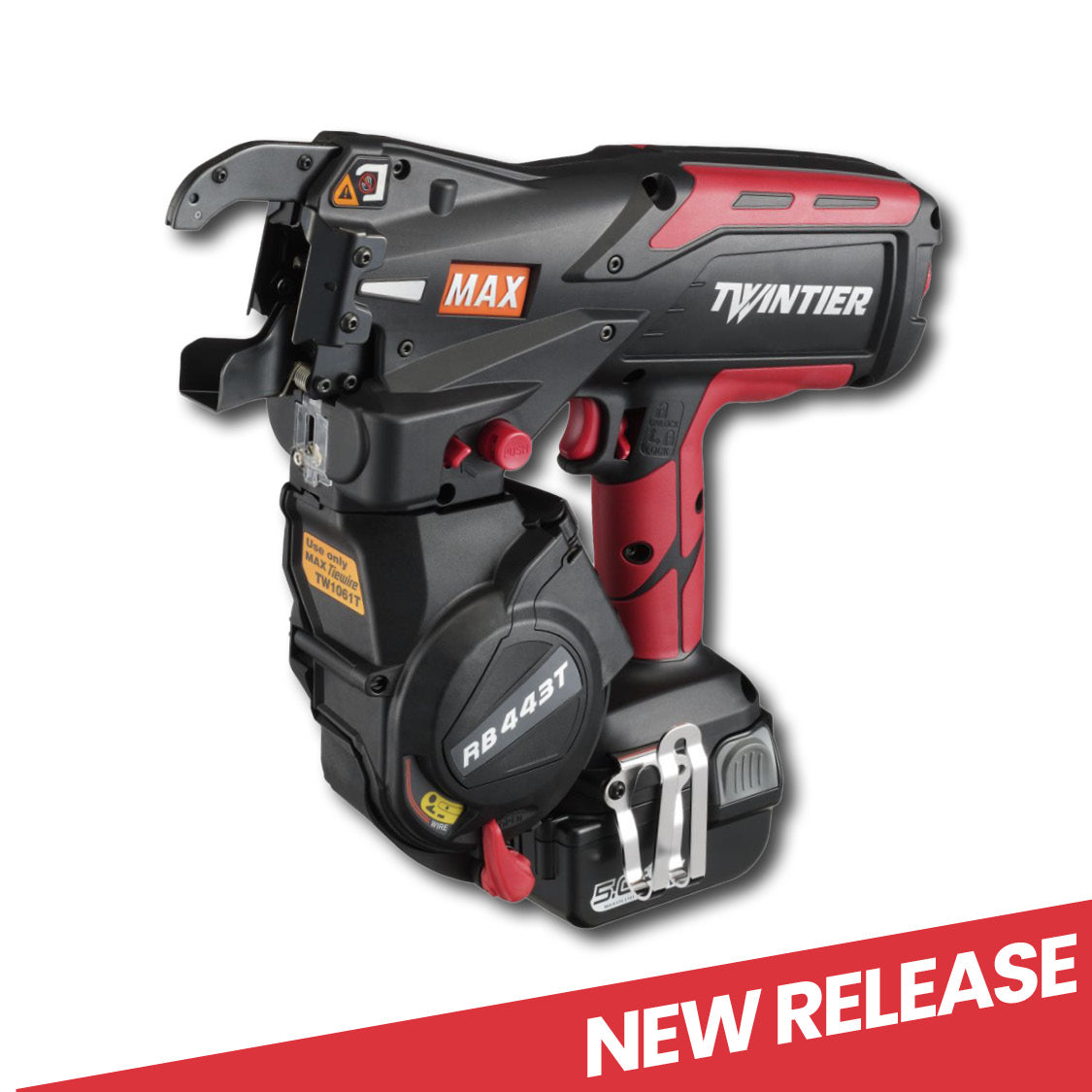

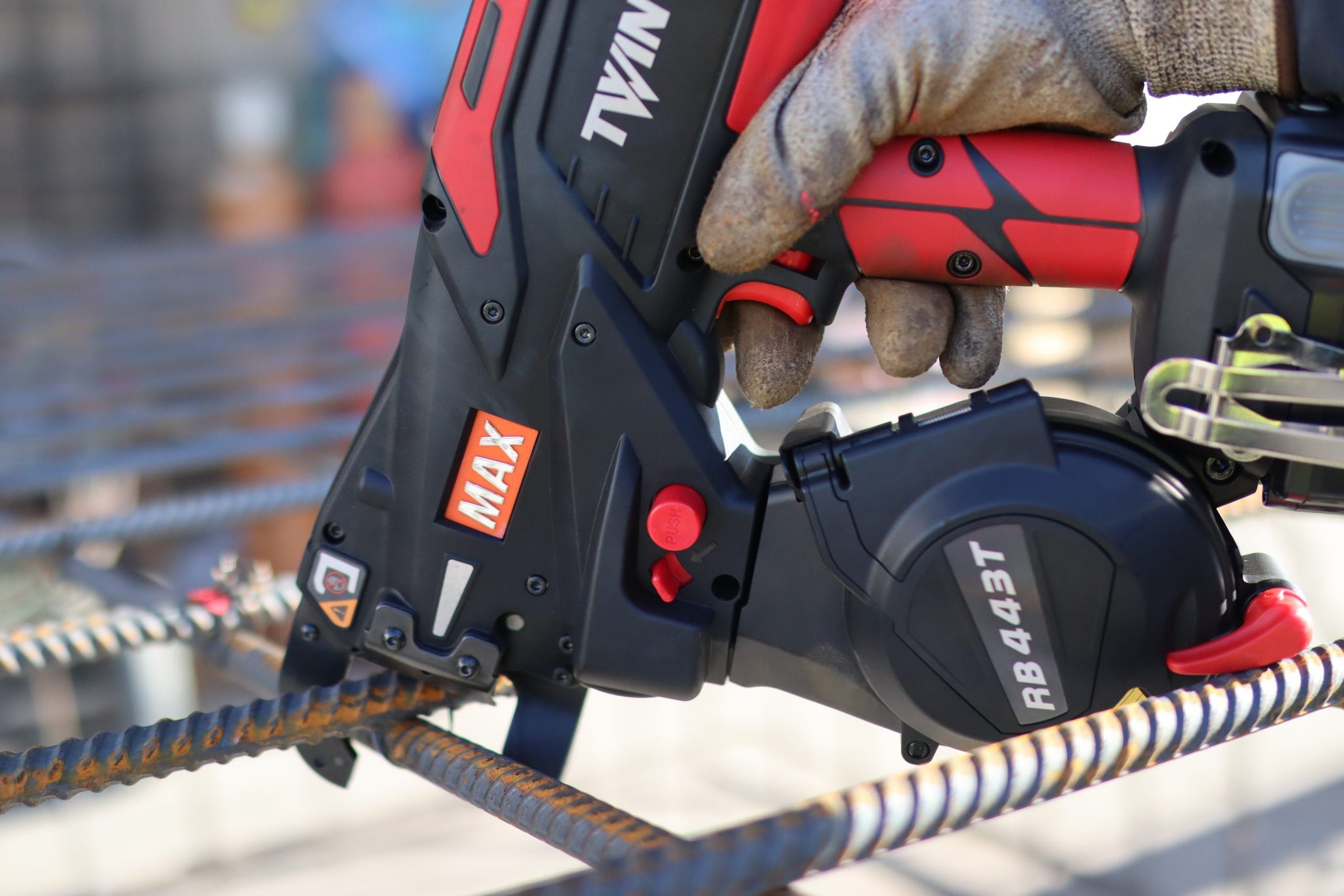

Experience next-level productivity with the Max RB443T TWINTIER, the latest innovation from Max, a pioneer in battery-powered rebar tying tools since 1993. Engineered for speed, strength, and efficiency, the RB443T delivers ultra-fast 0.5-second ties with 1.5x stronger grip, making it ideal for high-demand job sites. Designed with a double wire capacity (up to 240 ties per coil), it dramatically reduces wire changes and boosts productivity.
Applications
Precast Concrete Manufacturing
General Concrete Construction
Steel Rebar Fixing
Underfloor Heating Installations
Swimming Pool Rebar Work
Features
Ultra-Fast Tying – Just 0.5 Seconds Per Tie
Achieve ties 1.8x faster than previous models. As soon as you pull the trigger, the tie is complete saving valuable time on every job.
Superior Tie Strength – 1.5x Tighter Binds
The advanced Wire Pull Back Mechanism delivers tighter, more secure ties—improving structural integrity and long-term durability.
Compact Knot Design – Half the Tie Length
The RB443T forms a shorter 12mm tie knot (compared to 24mm), reducing bulk and enhancing concrete coverage.
Double Coil Capacity – Fewer Reloads, More Output
Optimized wire usage means you get up to 240 ties per coil doubling the work before a reload. One full carton (30 coils) provides up to 7,200 high-strength ties.
Cost & Time Efficiency
Faster operation and fewer reloads translate into reduced labor time and higher project output saving money on every job.
Large Jaw Capacity – Up to 22mm x 22mm Rebar
The robust jaw accommodates larger rebar sizes for versatile use across a wide range of applications.
Wire Load Assist – Easy, Error-Free Reloading
Simplified wire replacement without the need for a release button eliminates reset errors and downtime.
Specifications:
| Additional Features | Details |
|---|---|
| WEIGHT |
2.5 kg |
| DIMENSIONS | 295mm(H) x 120mm(W) x 330mm(L) |
| MINIMUM TIES PER COIL | 170 |
| MAXIMUM TIES PER COIL | 265 |
| APPLICABLE WIRE PRODUCT/GA | TW1061T, TW1061T-PC, TW1061T-EG, TW1061T-S |
| APPLICABLE REBAR SIZE | 10 x 10 - 22 x 22, up to 13 x 13 x 16 x 16(Unit: mm) |
| TIES PER CHARGE | 5000 |
| TIE SPEED | 0.5 sec |
| TIE WRAPS | 1 wrap with double wire |
| BATTERY CHARGE TIME | 80% charge in 60 minutes, 100% fully charge 80 minuets |
| BATTERY | JPL91450A x 2 pieces |
| CHARGER | JC925A x 1 piece |
