Product Description

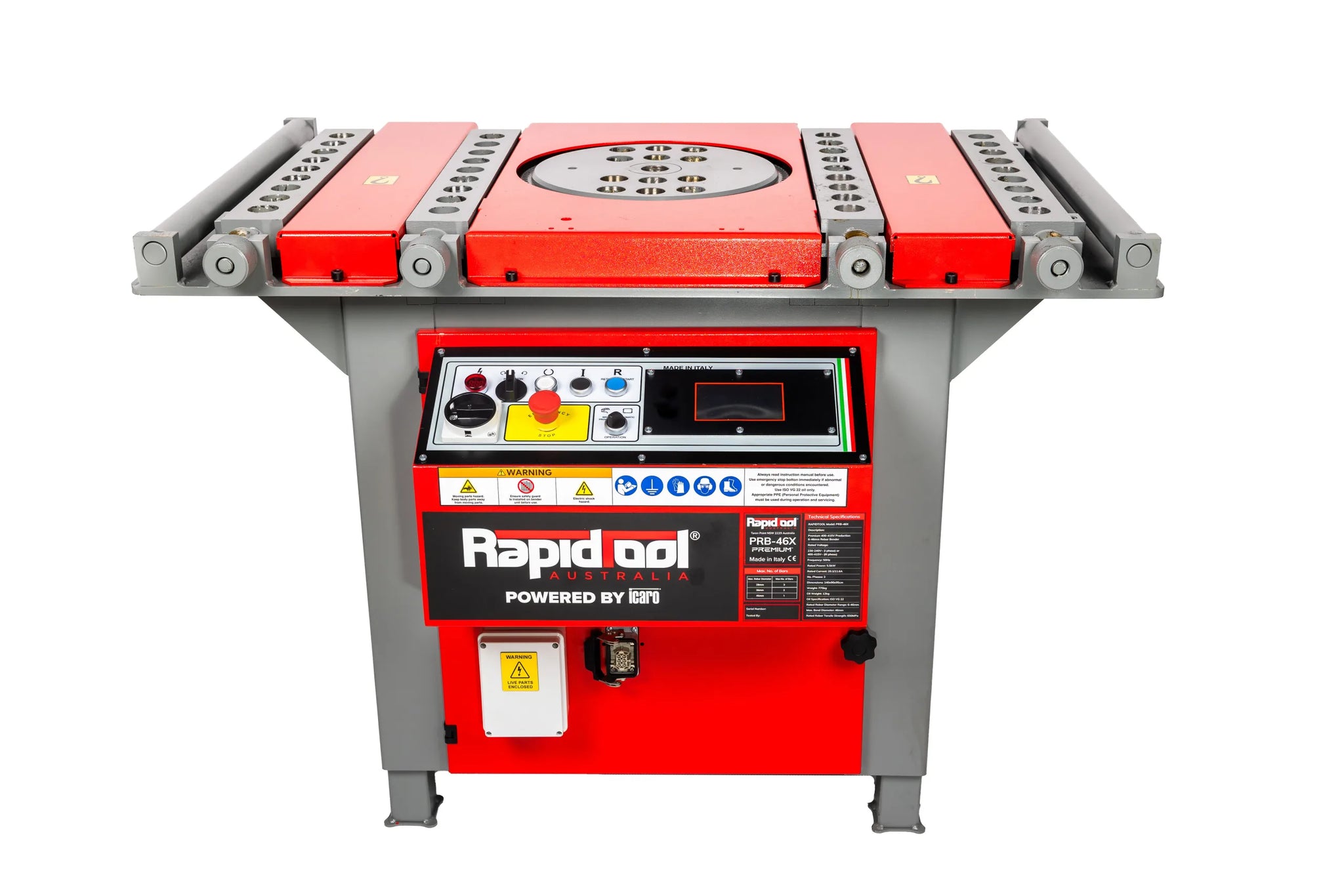

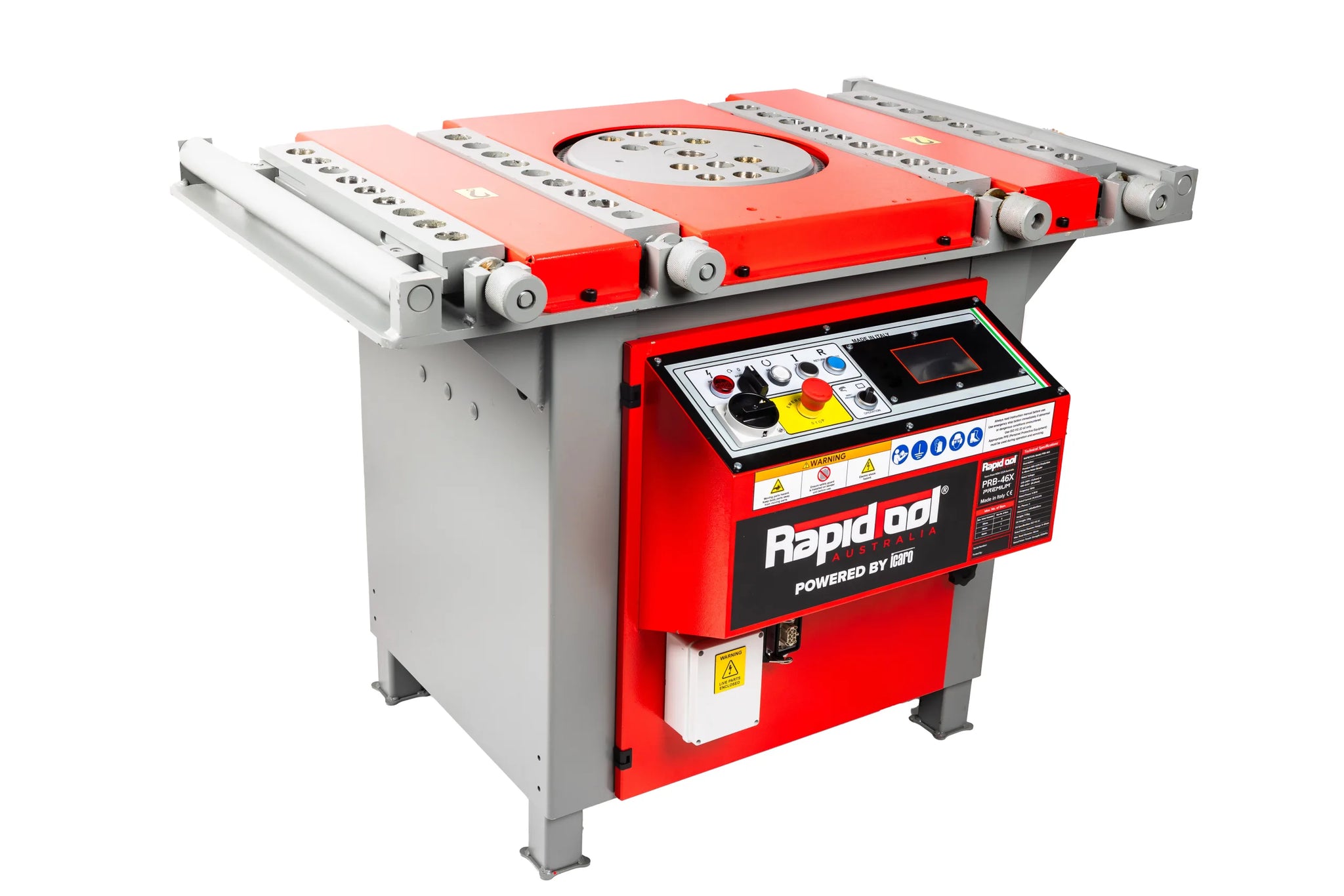

Premium 400-415V Heavy Duty 6-46mm Rebar Bending Machines by RAPIDTOOL.
Engineered with European precision and built tough for the Australian construction industry.
Explore RAPIDTOOL’s advanced Rebar Bending Machines, purpose-designed for heavy-duty performance in precast yards, steel fabrication facilities, and onsite construction projects throughout Australia and New Zealand.
From bending rebar hooks, ligatures, stirrups, spirals, to rings, the Premium PRB-46X Heavy Duty Rebar Bending Machine and its optional accessories deliver unmatched power, accuracy, and efficiency.

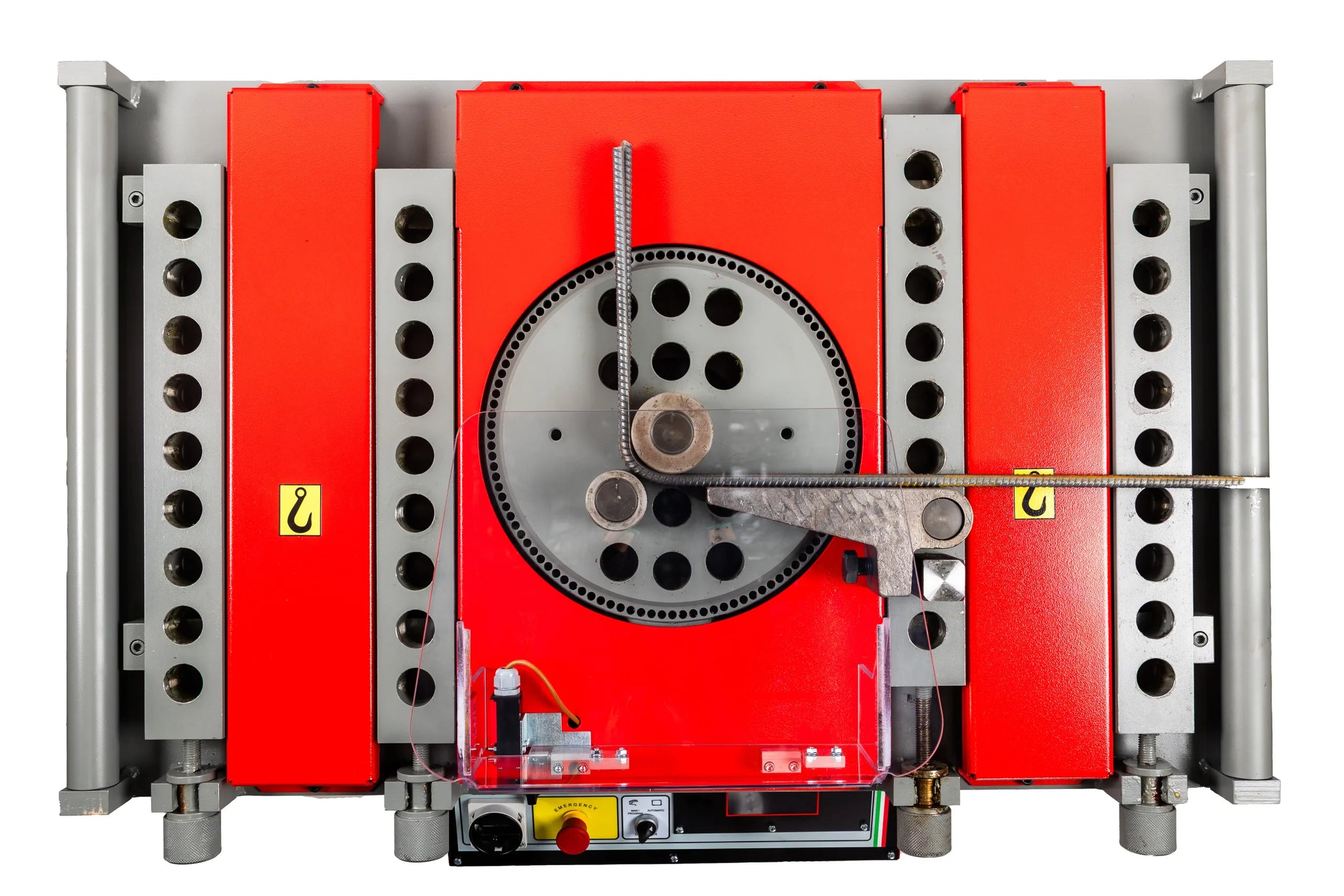

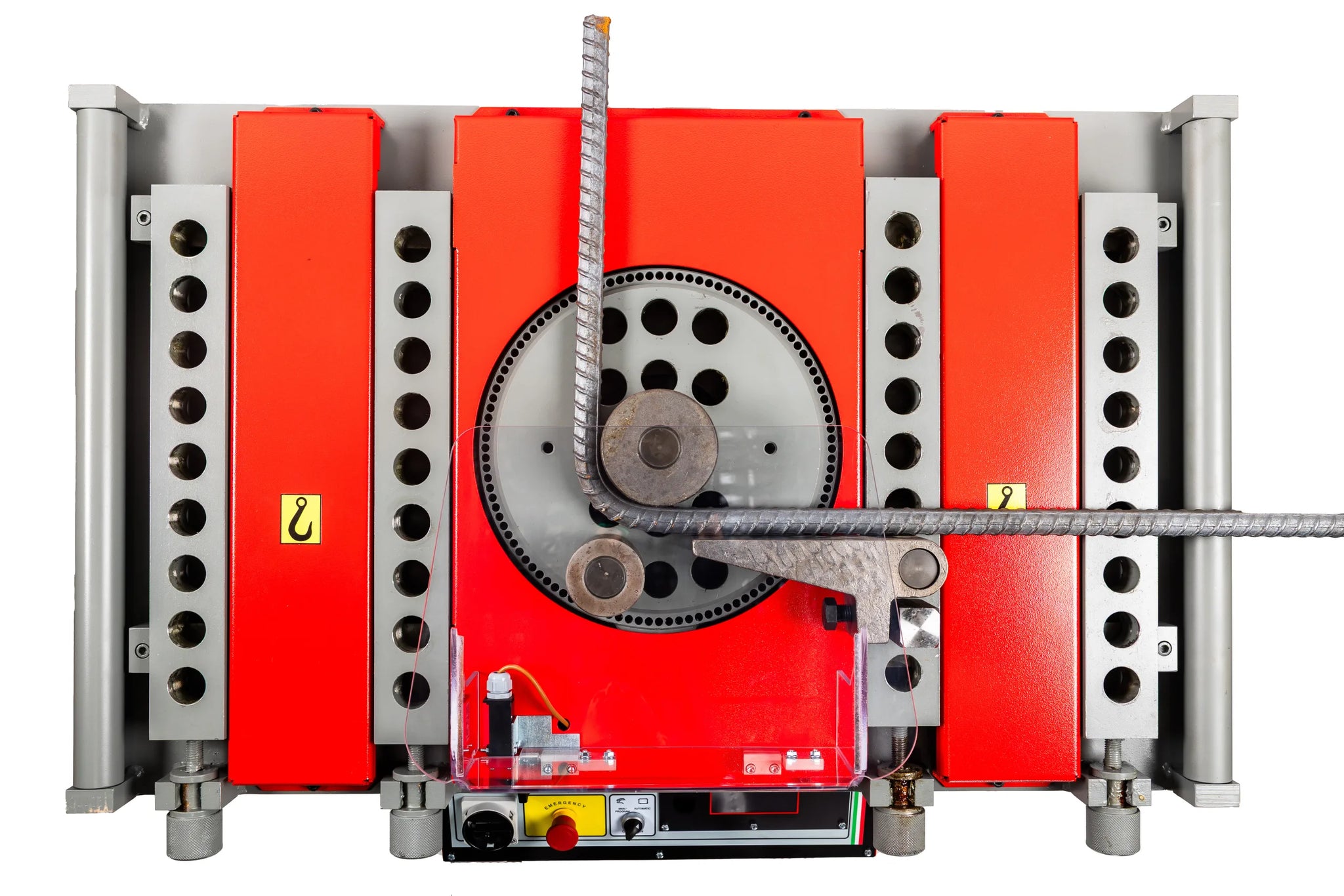

The PRB-46X Heavy Duty Rebar Bender ensures smooth, precise bends with an impressive bending capacity of 6–46mm rebar diameter (650MPa).
Powered by a robust three-phase motor engineered for continuous heavy-load operation, this rebar bender is perfect for high-volume production, handling single or multiple rebar sizes from 6mm up to 46mm with exceptional performance.
Built for demanding workshop environments, the PRB-46X offers durability, reliable accuracy, and high-speed bending capabilities for long-term use.
For safety and compliance, installation must be performed by a licensed electrician.
Features
Fast, Clean Bends
Perfect for high-volume rebar bending and consistent production output
Multi-Bar Processing
Boosts efficiency with the ability to bend multiple rebars simultaneously
Wide Bending Capacity
Handles 6–46mm rebar (D500N) with precision and power

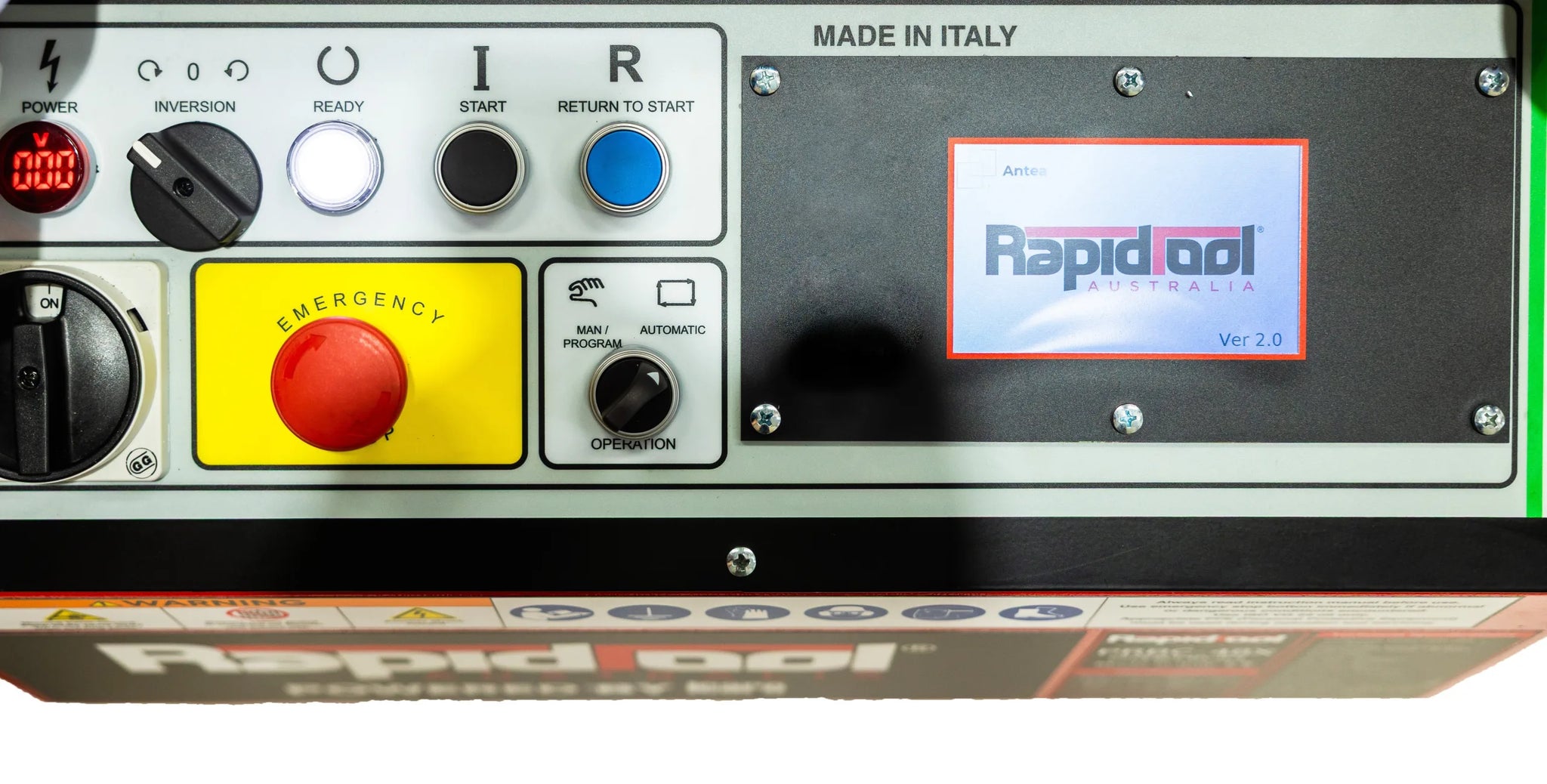

Advanced Digital Controls
Preset multiple bend angles with built-in bend counter for accuracy

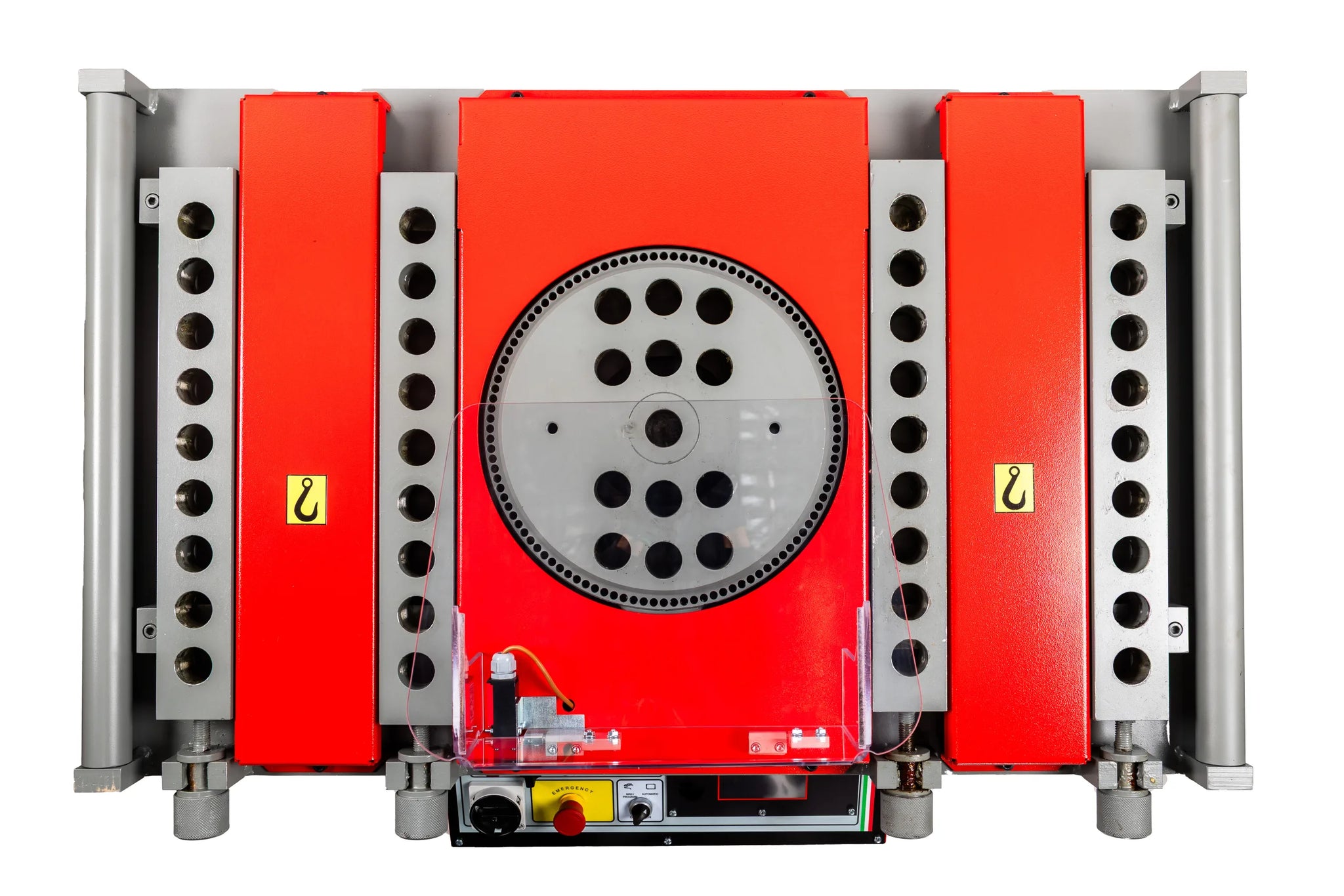

Bidirectional Bend Table
Provides greater flexibility and faster workflow in rebar fabrication
Heavy-Duty Three-Phase Motor
Designed for continuous, high-output rebar bending operations
Ergonomic Foot Pedal Control
Safe, flexible, and operator-friendly handling system
Safety-First Construction
Features interlocked guards and door sensors for maximum operator protection
Optional Forming Tools
Ligature, stirrup, spiral, and rebar ring forming tools available
Durable Industrial Frame
Built tough for heavy-duty use and long service life in demanding environments
High Precision and Speed
Delivers production-grade performance with consistent accuracy
European Engineering with Local Support
Designed for Australian industry with full servicing and parts available locally

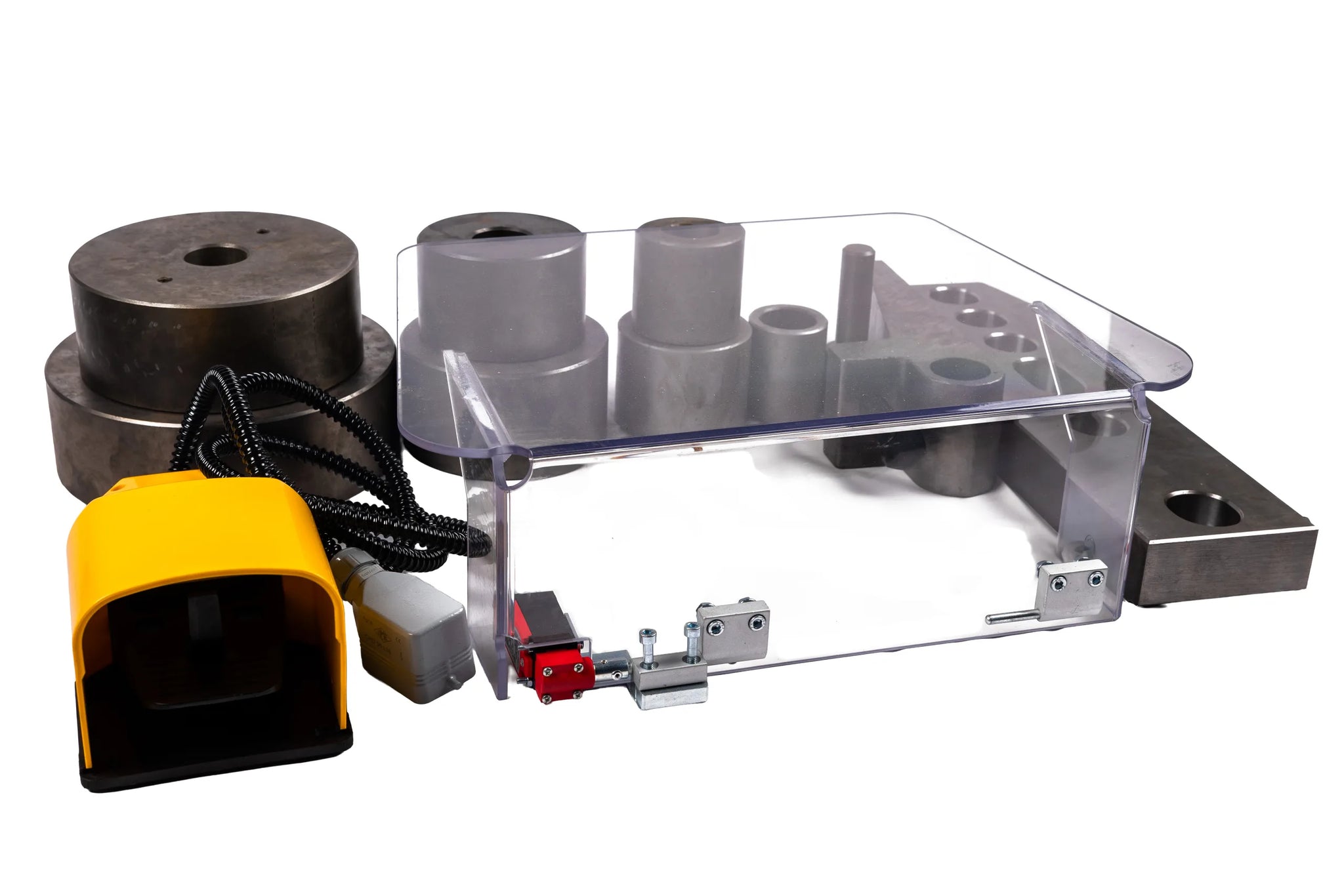

Includes:
Foot pedal for safe and easy operation
Multiple bend pin and bushing diameters for versatile bending requirements

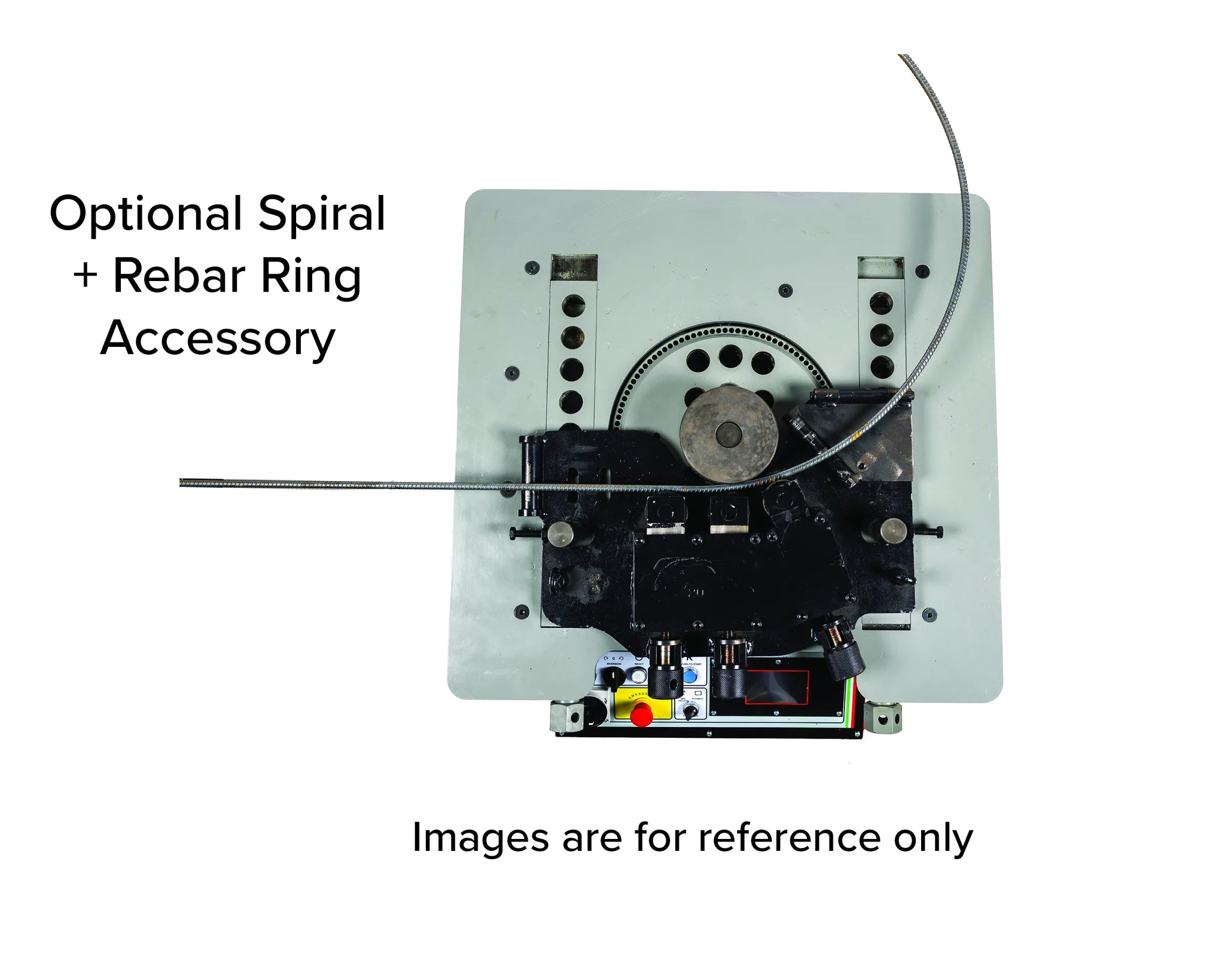

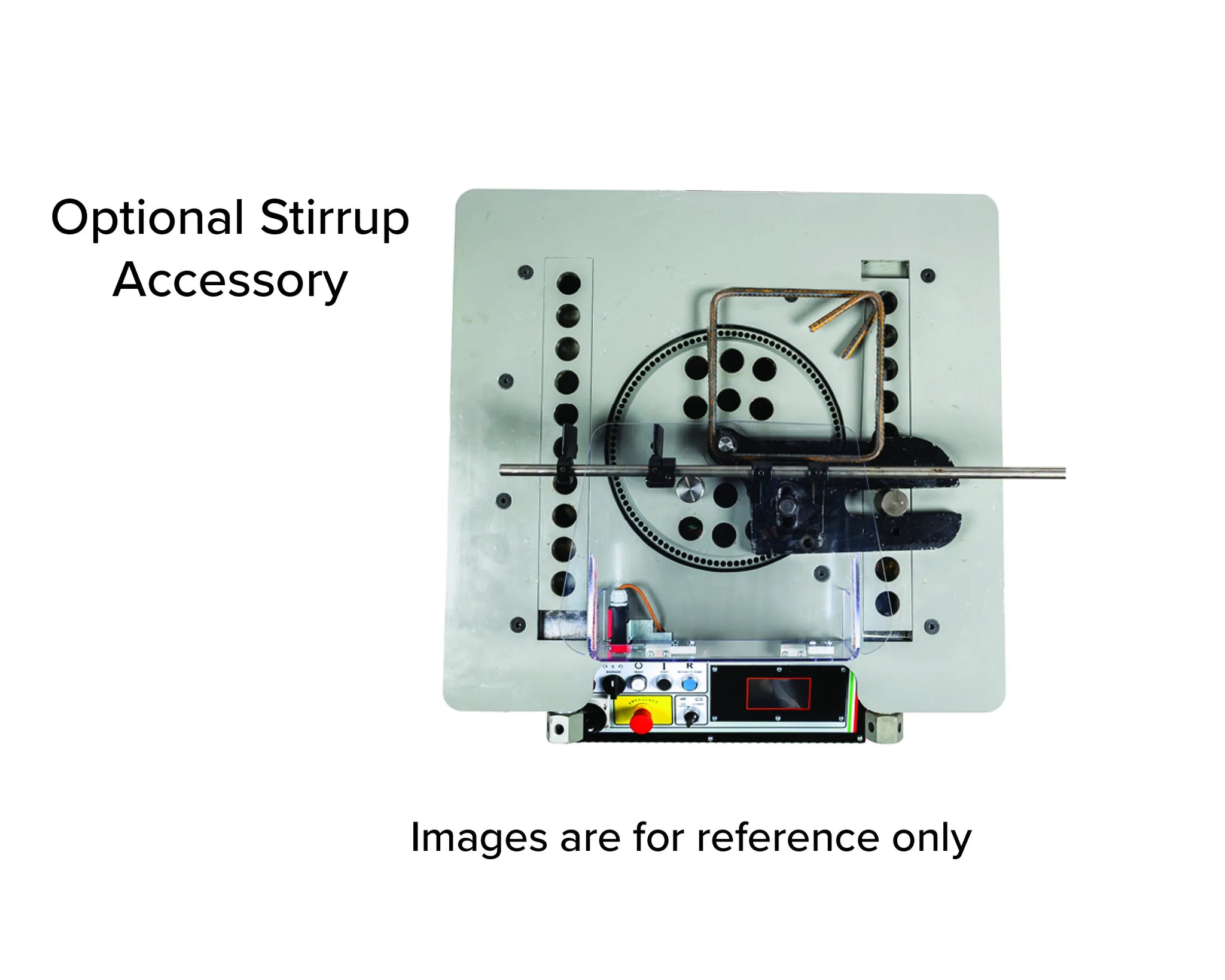

Optional forming guides: ligature/stirrup, spiral, and rebar ring tools
Priority Service:
Backed by RAPIDTOOL with reliable local support, parts availability, and servicing across Australia
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Model |
PRB-46X |
| Poles | 4 |
| Rated Voltage | 400-415V 3~ |
| Rated Frequency | 50Hz |
| Rated Power | 5.5kW |
| Rated Current | 11.6A |
| Number of Phases | 3 |
| Full Load Motor Speed | 1400 RPM |
| Average Bend Cycle Speed | 8 RPM |
| Rated Bending Diameter Range | 6-46mm (650Mpa) |
| Max Diameter of Bar & No. of Bars | 46mm – 1 Bar | 34mm – 2 Bars | 22mm – 3 Bars |
| Net Weight | 775kg |
| Machine Dimensions (L x W x H) | 90cm x 75cm x 85cm |
| Accessory Inclusions | Squaring Arm Set, Pins, Bushings, Large Diameter Arm*, Foot Pedal & Safety Guard |
| Accessory Bend Pin/Bushing Diameters |
25/32/50/60/80/100/120/192*/240*mm *Use with Large Diameter Arm (Custom Diameter Bushings Available) |
| Optional Accessories | Stirrup/Ligature + Spiral/Rebar Ring Forming Tools |
