Product Description

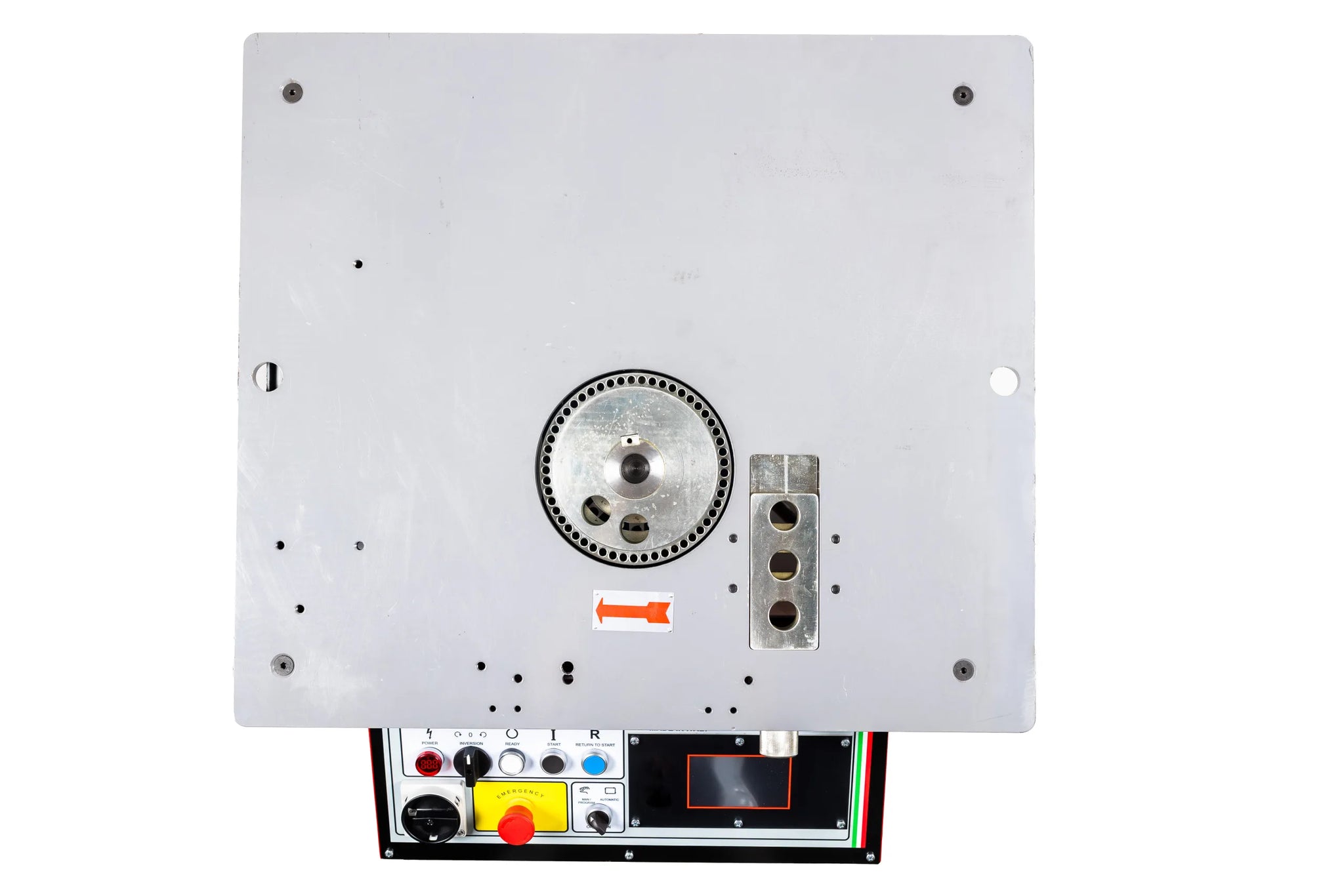

Premium 400-415V Heavy Duty 6-16mm Stirrup + Rebar Bending Machines by RAPIDTOOL.
Experience the power and precision of RAPIDTOOL’s next-generation Rebar Bending Machines, expertly engineered for industrial-grade performance in precast and steel fabrication facilities throughout Australia and New Zealand.

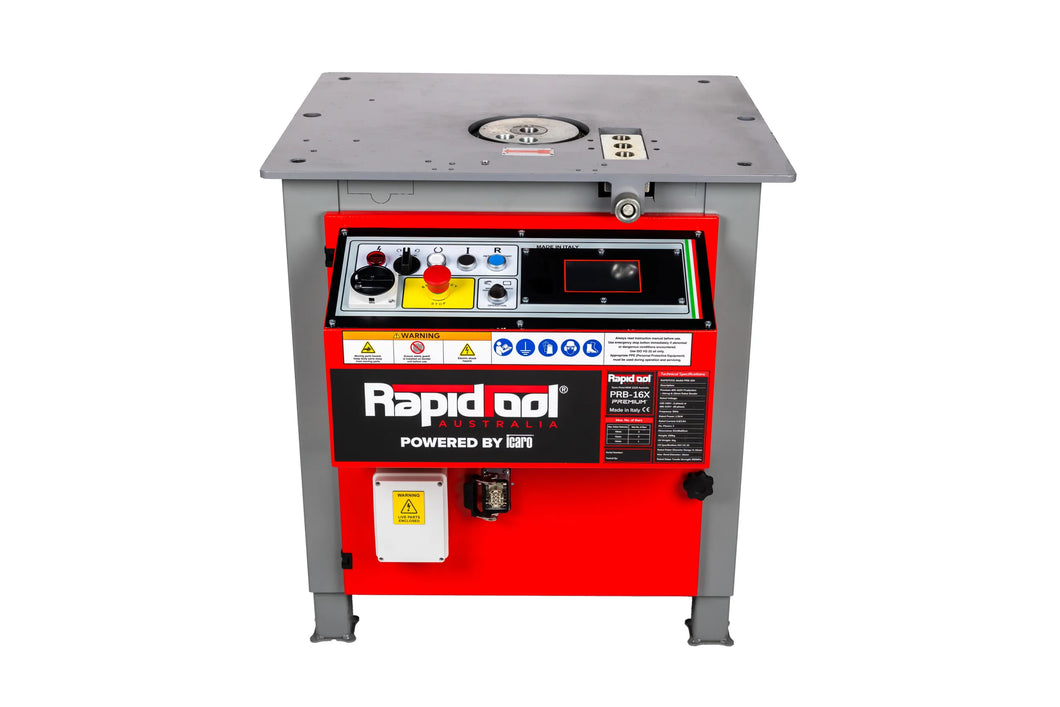

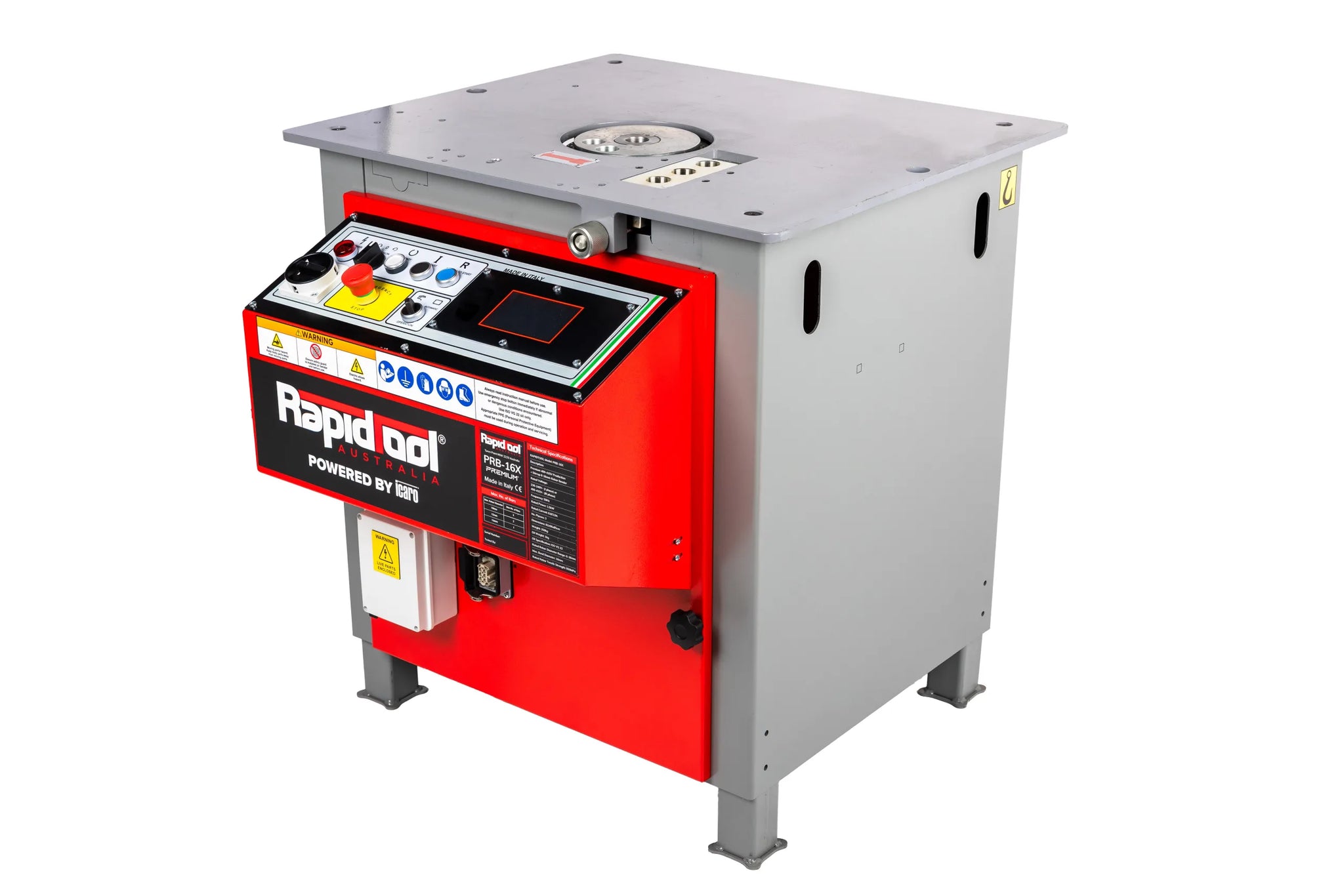

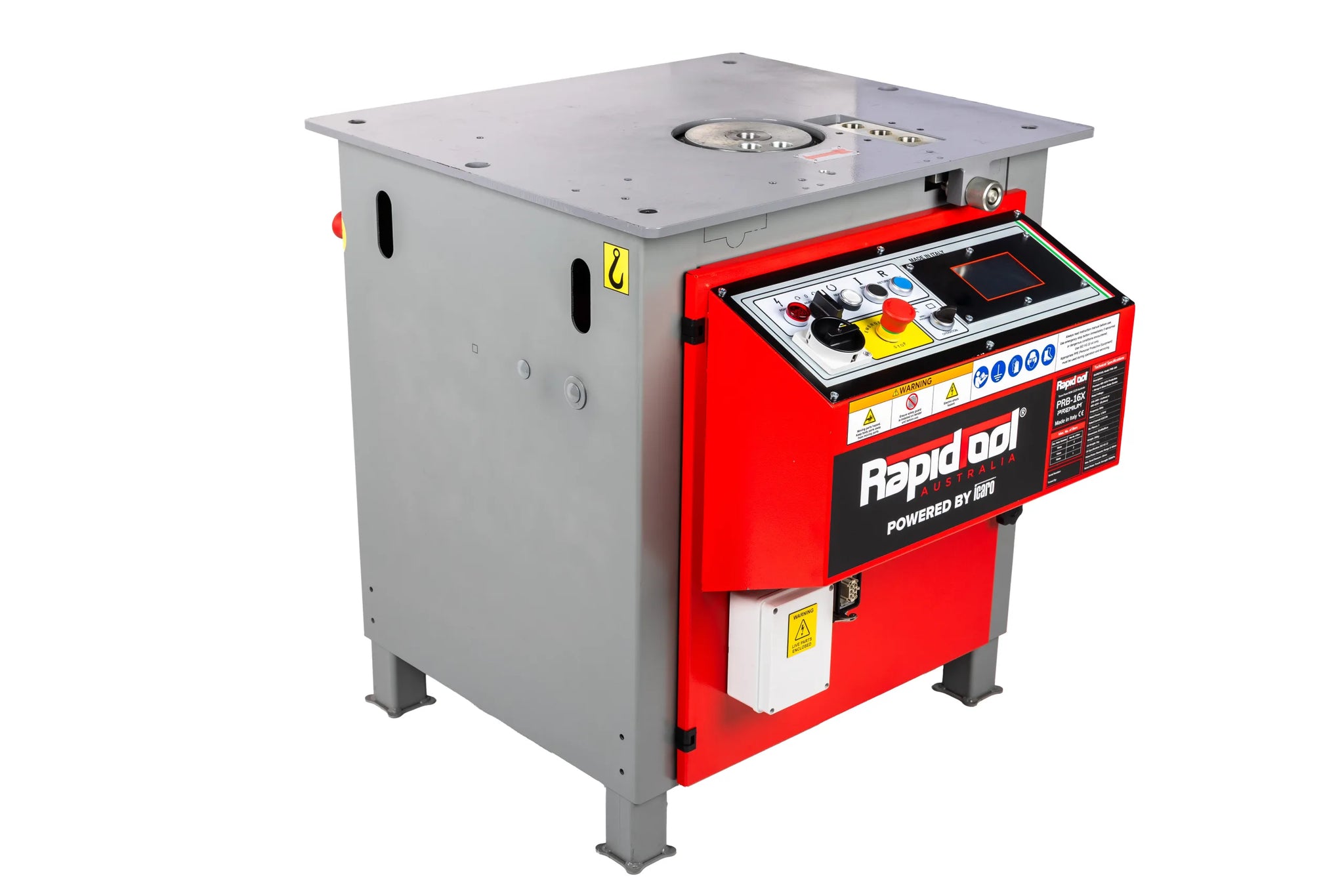

Designed for maximum efficiency, the Premium PRB-16X Heavy Duty Stirrup and Rebar Bending Machine is perfect for forming hooks, ligatures, and stirrups with unmatched power, accuracy, and speed. Every component is built to deliver superior bending performance and withstand demanding production environments.
With a bending capacity of 6–16mm diameter rebar (650MPa), the PRB-16X ensures clean, precise bends every time making it ideal for consistent, high-quality results in large-scale fabrication projects.
Powered by a robust three-phase motor engineered for continuous, heavy-duty operation, this rebar bender offers exceptional strength and efficiency for both single and multiple bar processing from 6mm to 16mm, ensuring reliable performance in high-volume applications.
Built to handle harsh workshop conditions, the PRB-16X combines durability, speed, and long-term accuracy, making it a trusted choice for professional steel fabrication and construction teams.
Installation must be performed by a licensed electrician to ensure safety and compliance.
Features
Fast, Clean Bends
Engineered for high-volume rebar production, ensuring smooth and accurate results every time.
Multi-Bar Processing

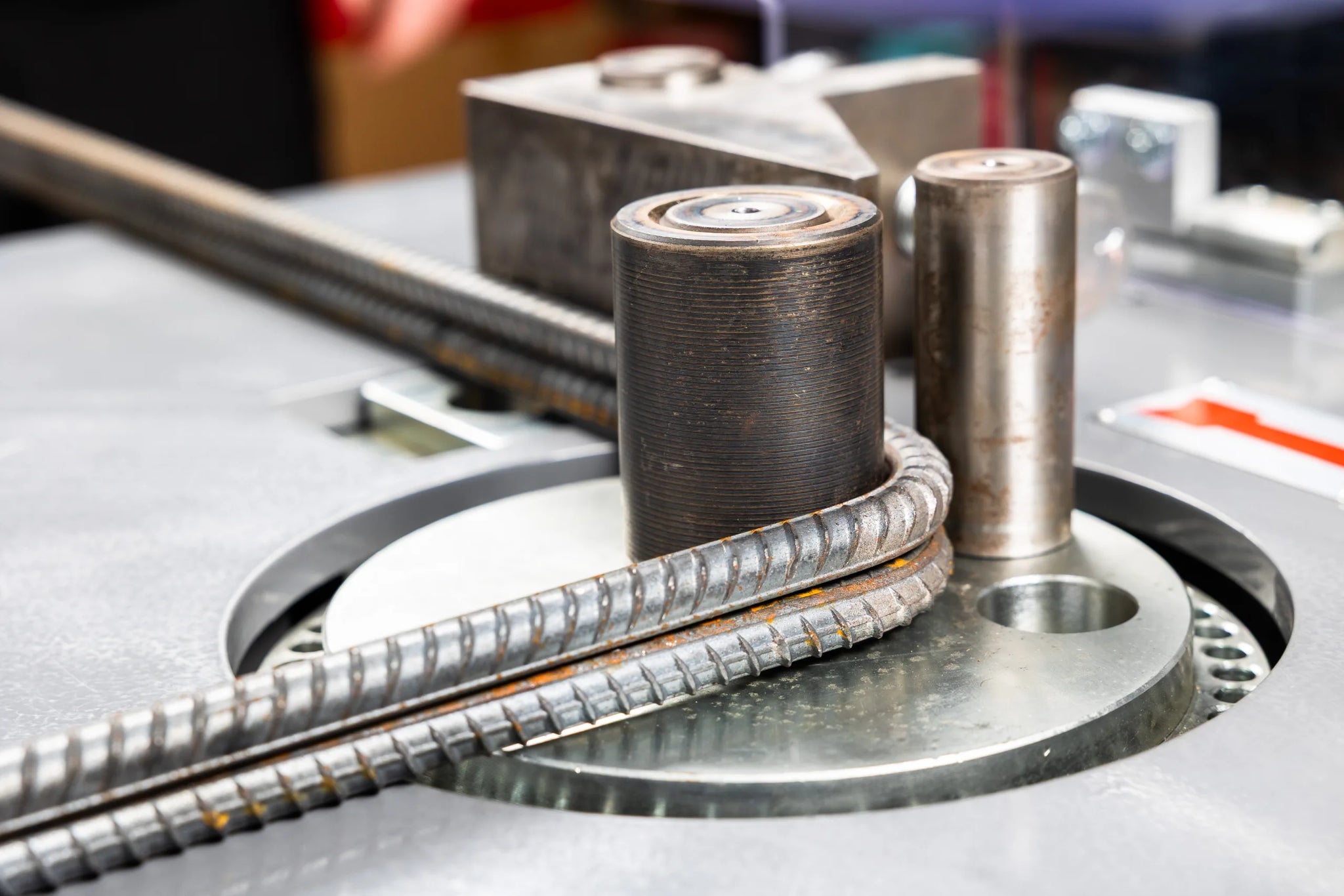

Designed for high-efficiency bending of multiple bars simultaneously, boosting productivity.
Wide Bending Capacity
Handles 6–16mm rebar (D500N), offering flexibility for a variety of rebar sizes and applications.
Advanced Digital Controls

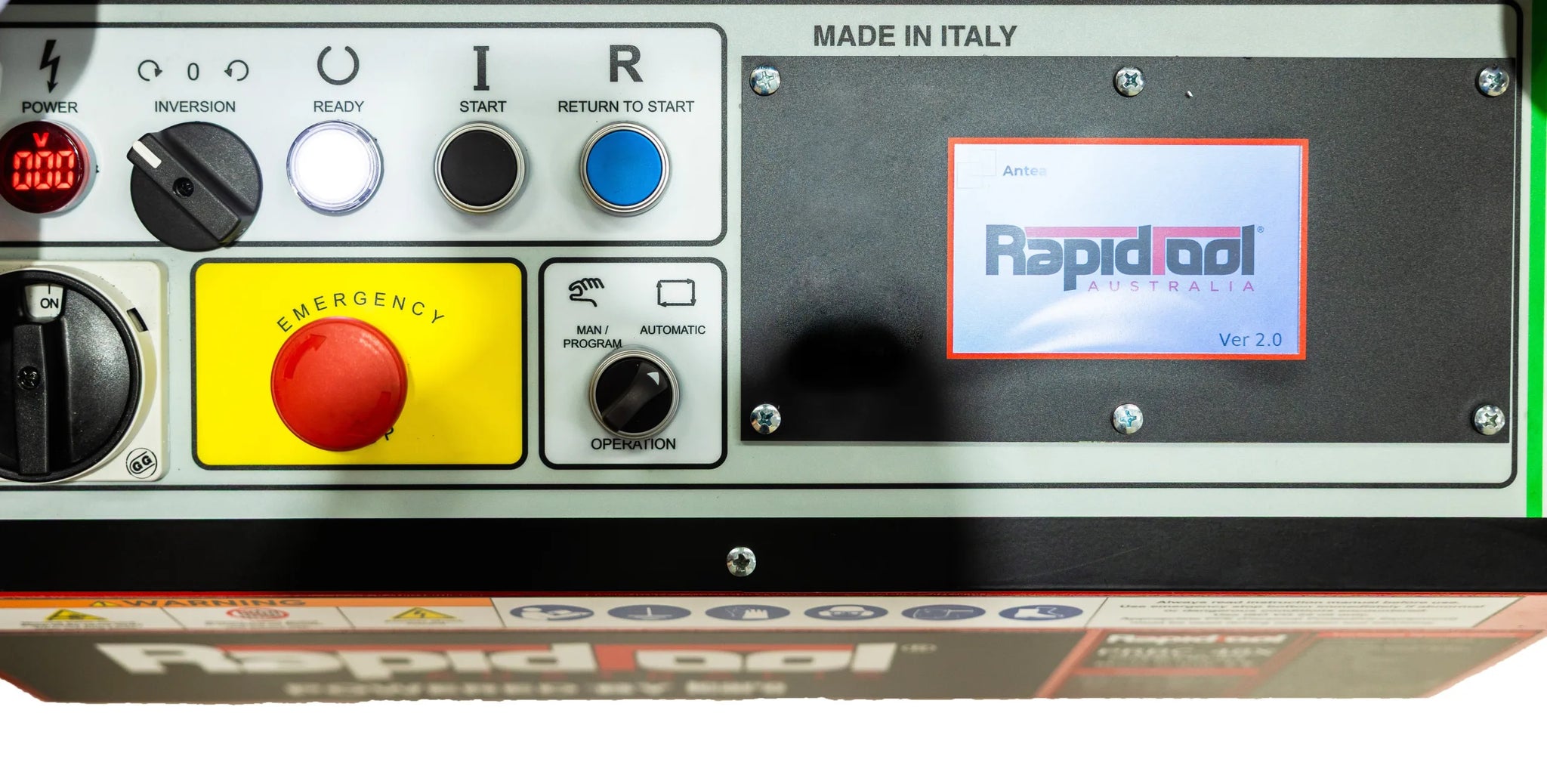

Features digitally preset bend angles and a built-in bend counter for precision and consistency.
Heavy-Duty Three-Phase Motor
Delivers continuous, high-output performance ideal for demanding industrial use.
Foot Pedal Control
Offers hands-free operation that is flexible, ergonomic, and enhances operator safety.
Safety-First Design

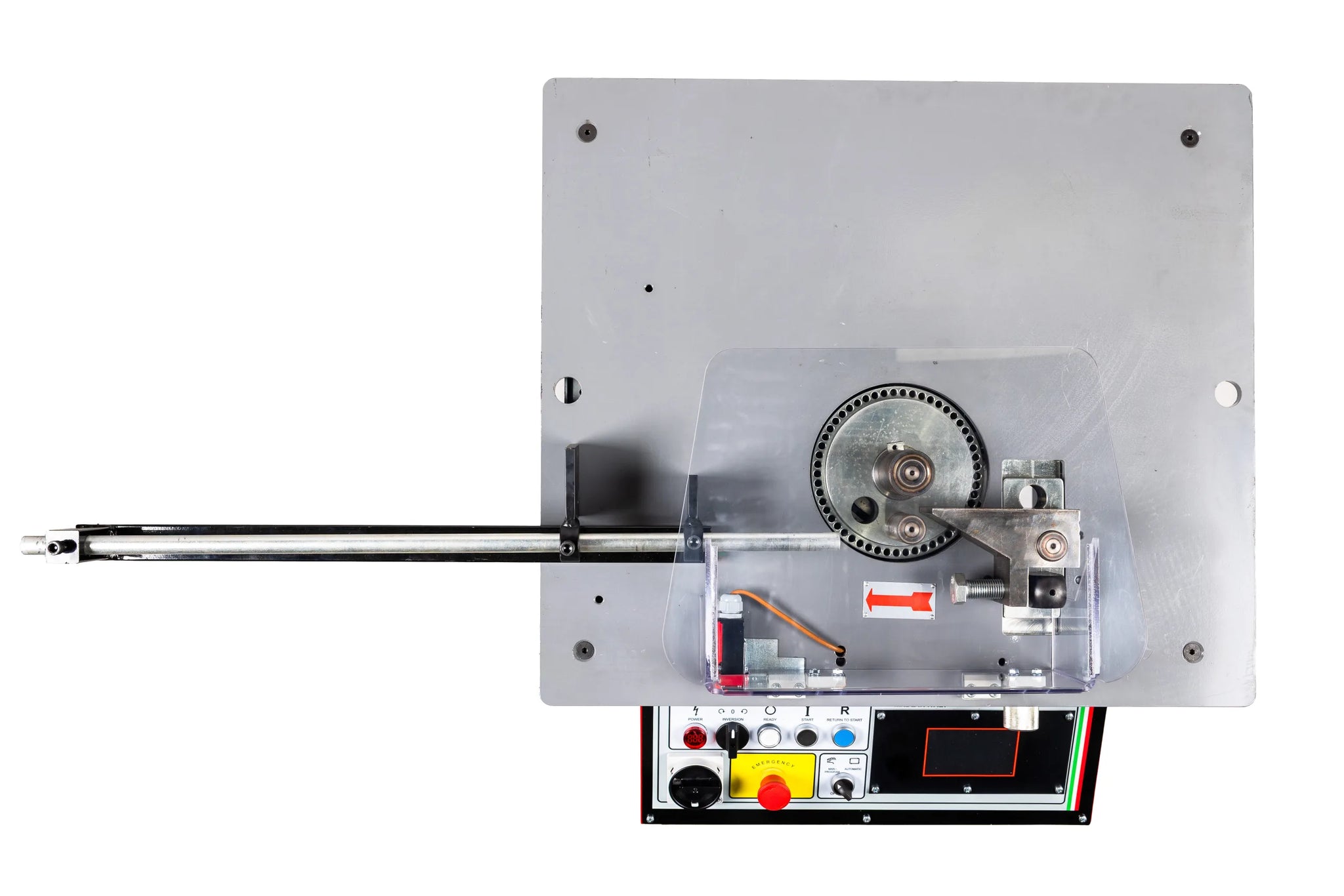

Equipped with interlocked guards and door sensors for maximum workplace safety.
Industrial-Grade Frame
Built for exceptional durability and a long operational lifespan in tough environments.
Precision and Speed
Provides production-grade performance, ensuring accuracy and faster bending cycles.
European Engineering, Australian Support
Designed for Australian conditions, backed by local parts, service, and expertise.

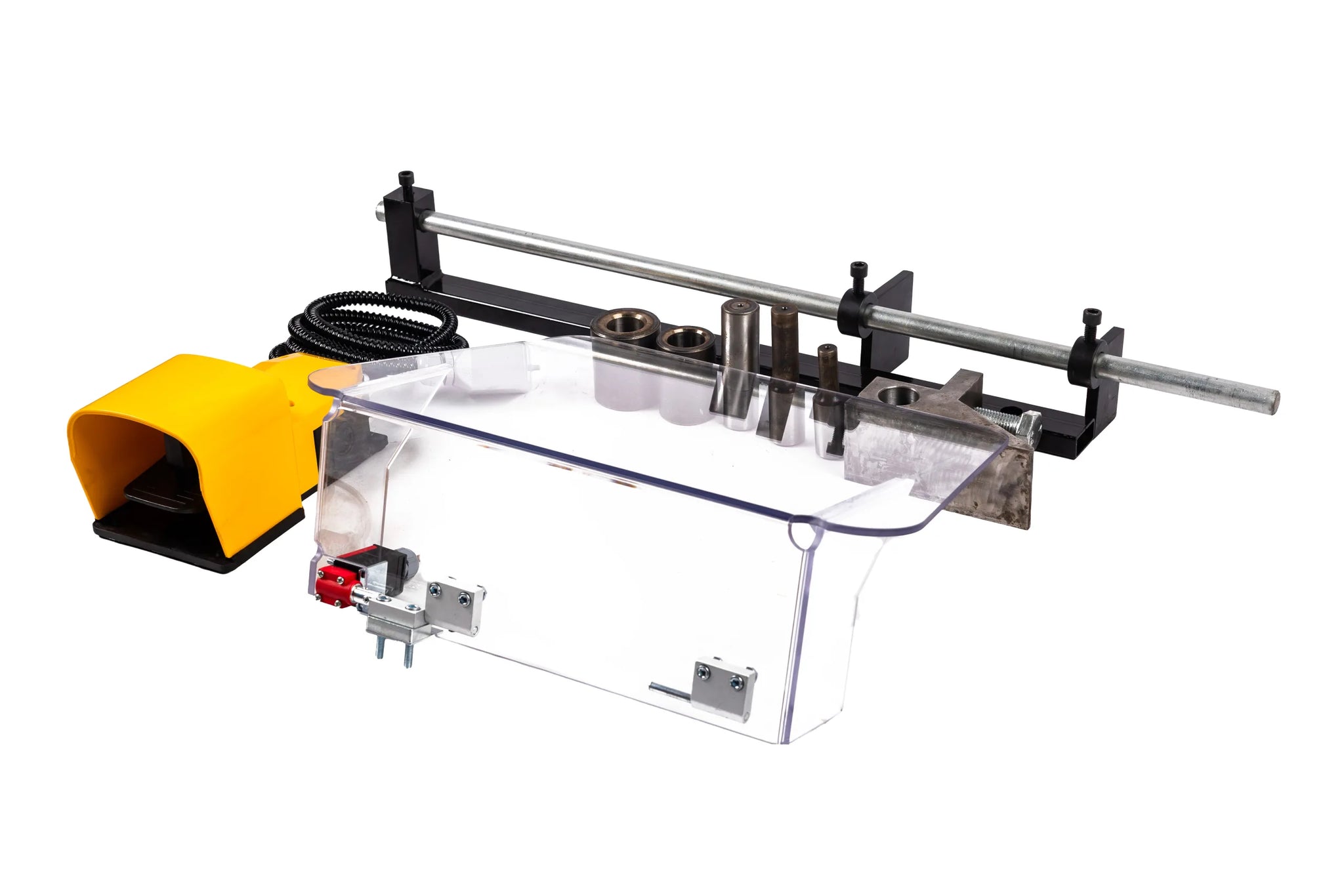

Includes:
Foot pedal for hands-free operation
Multiple bend pin and bushing diameters for versatile bending

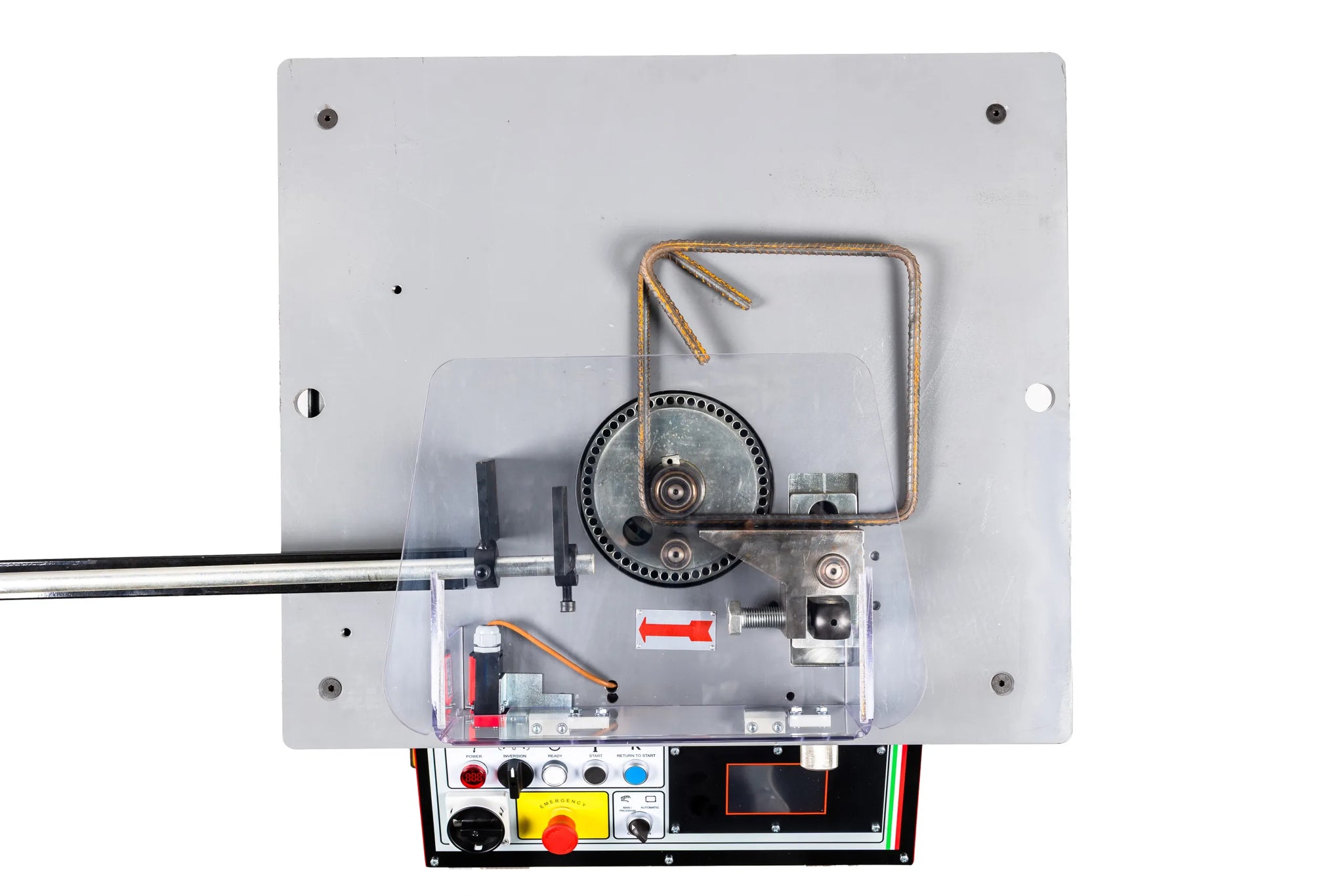

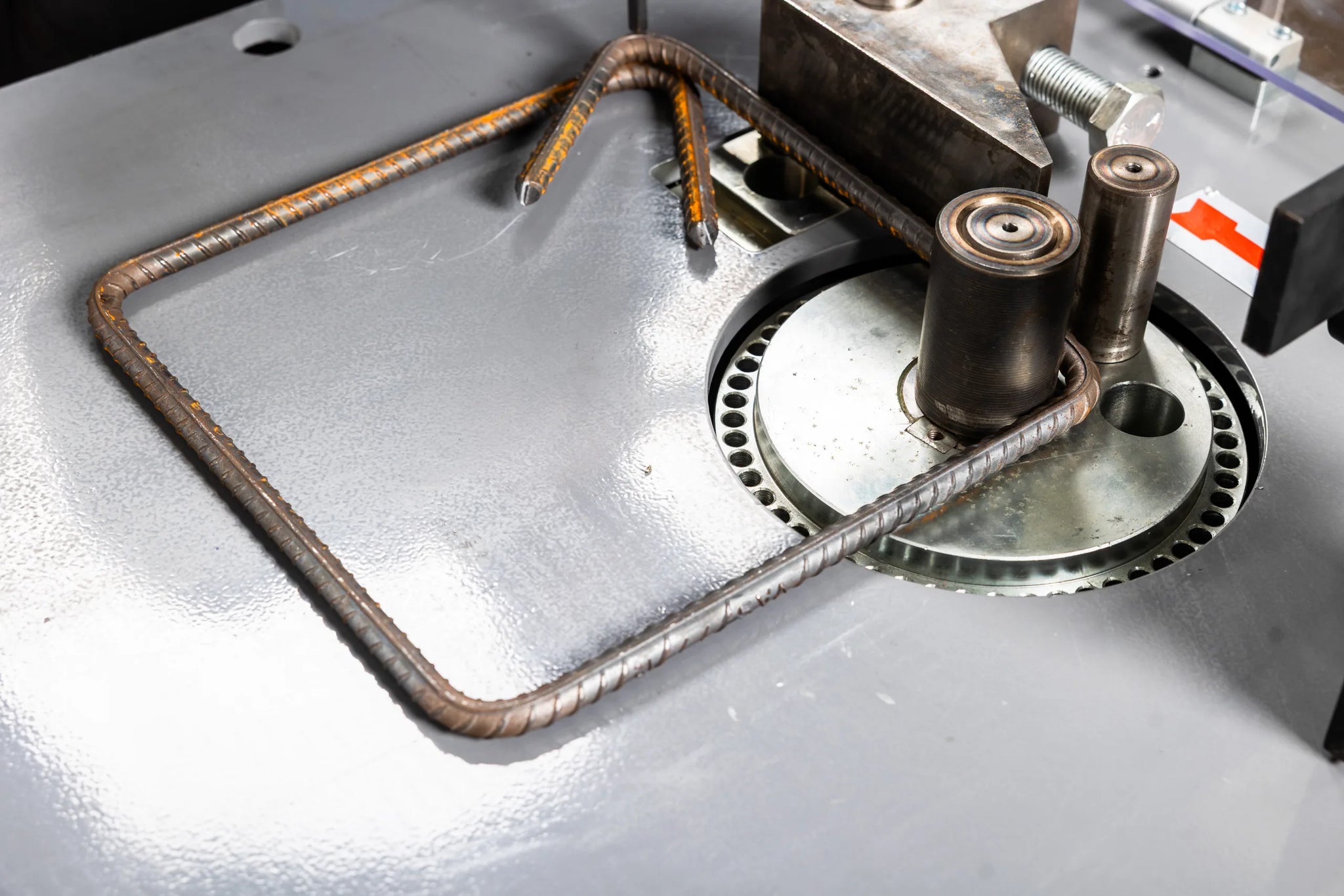

Ligature/stirrup forming tool for custom shapes
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Model |
PRB-16X |
| Poles | 4 |
| Rated Voltage | 400-415V 3~ |
| Rated Frequency | 50Hz |
| Rated Power | 1.5kW |
| Rated Current | 3.9A |
| Number of Phases | 3 |
| Full Load Motor Speed | 1415 RPM |
| Average Bend Cycle Speed | 20 RPM |
| Rated Bending Diameter Range | 6-16mm (650Mpa) |
| Max Diameter of Bar & No. of Bars | 16mm – 1 Bar | 12mm – 2 Bars | 10mm – 3 Bars |
| Net Weight | 250kg |
| Machine Dimensions (L x W x H) | 90cm x 80cm x 85cm |
| Accessories | Squaring Arm Set, Pins, Bushings, Stirrup/Ligature Forming Tool, Foot Pedal & Safety Guard |
| Accessory Bend Pin/Bushing Diameters |
16/25/32/50/60*mm |
