Product Description

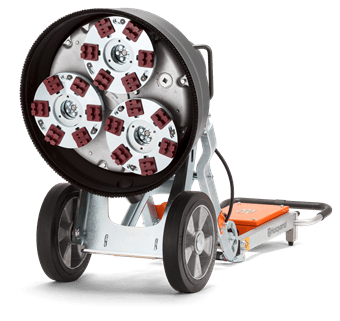

The PG 510 is a planetary floor grinder with three grinding discs and a total grinding width of 515 mm. It is suitable for removing coatings, grinding and polishing concrete, etc. The grinding head on the PG 510 is effectively sealed to keep dust and moisture out. This greatly extends the lifetime of the bearings and belts.

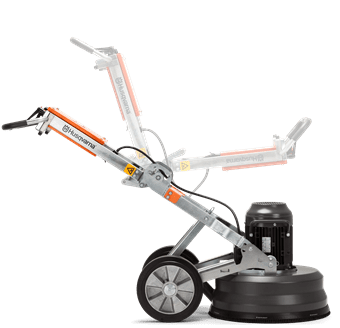

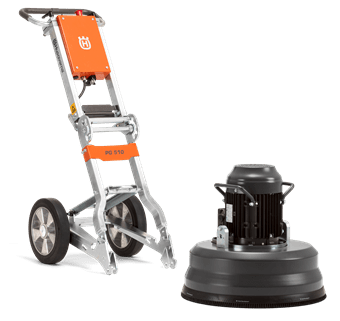

The PG 510 is ideal as a rental machine and suitable for both professional and semi-professional work. Quick-release couplings allow the grinding head to be separated from the chassis which can then be easily folded for transport. The grinder also has a digital hour meter.
Features
Easy to use
Efficient dust management
Easy to transport and set-up
Planetary operation
Sealed grinding head
Time saving tool change
Product Number: 967 93 20‑06
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Engine Power (As rated by the engine manufacturer) |
4 kW |
| Power source | Corded |
| Phases | 3 ph |
| Voltage | 380-420 V |
| Rated current | 9 A |
| Frequency | 50 Hz |
| Pins | 4 |
| Grinding width | 515 mm |
| Number of grinding discs | 3 |
| Direction of rotation | One direction |
| Grinding disc diameter | 230 mm |
| Grinding disc speed min | 0 rpm |
| Grinding disc speed max | 558 rpm |
| Grinding pressure, max | 79 kg |
| Product size length | 1,525 mm |
| Product size width | 555 mm |
| Product size height | 950 mm |
| Weight (complete product w/o side packed articles) | 133 kg |
| Packaging length | 1,020 mm |
| Packaging width | 610 mm |
| Packaging height | 1,050 mm |
| Article gross weight | 152,000 g |
