Product Description

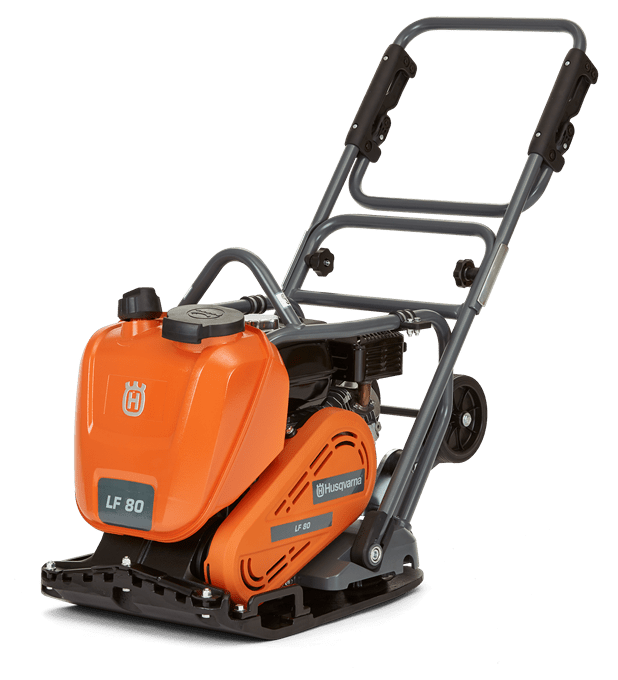

LF 80 LAT is a lightweight, fast-operating forward plate compactor, designed for efficient compaction of soil and asphalt. It is ideal for repair jobs and maintenance work, such as driveways and parking lots. The large water tank features an oversized cap to enable less frequent and faster refills. It is easy to clean, leaves no marks on the pavement and uses whatever water is available on-site.
Features
Hours of efficient work
Easy handling, excellent results
More work with less water
Easy to transport
Saving storage space
Product Number: 967 85 50 02
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Motor/engine model |
GX160 |
| Engine Power (As rated by the engine manufacturer) | 3.6 kW |
| Starter | Recoil |
| Exhaust emissions (CO₂ EU V) | 757 g/kWh |
| Power source | Petrol |
| Compaction application | Asphalt and Soil |
| Frequency | 95 Hz |
| Centrifugal force | 19 kN |
| Speed | 33 m/min |
| Plate width | 420 mm |
| Product size length | 1,037 mm |
| Product size width | 420 mm |
| Product size height | 1,114 mm |
| Weight (complete product w/o side packed articles) | 95 kg |
| Packaging length | 620 mm |
| Packaging width | 850 mm |
| Packaging height | 840 mm |
| Article gross weight | 97,000 g |
| Sound power level, guaranteed (LWA) | 105 dB(A) |
| Sound pressure level at operators ear (LpA) | 91 dB(A) |
| Vibrations left/front handle | 6.7 m/s² |
| Vibrations right/rear handle | 1.2 m/s² |
