Product Description
2 widths (125mm ED) & (110mm SM)
Upgrade your pool area with the Hide Linear Lid Kit – 1210mm, a sleek, flush-fitting solution designed to seamlessly blend with your surrounding paving or tiling. This innovative skimmer lid kit delivers a minimalist, high-end finish, eliminating visible plastic or metal covers and enhancing the overall aesthetic of your outdoor space.
Features
Exterior strip drains with stone inlay
Outdoor Drainage for Landscaping and Pools
Compatible with Everhard Easy Drain and Reln Storm Drain
(ED & SD channel not included)
Easily Removed Modular lengths @ 1210mm
Cover Depths to suit 10, 20, 30 and 40mm tile or stone
Adjustable height & clearances
Centralising Tabs; A world first in design
90º Mitred corner kit option
Inlay with your selected surface finish
20-year warranty
Flexible installation features
No equipotentially bonding required
Adjust modular lengths to tile widths, S/S Cutting disc included

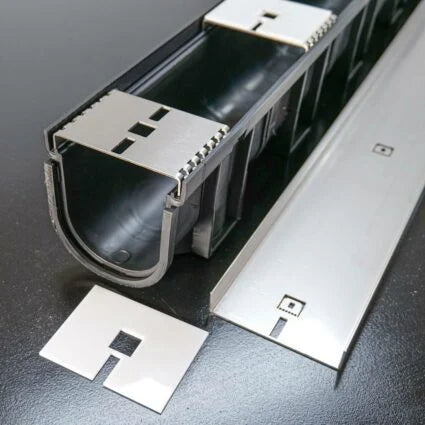

Hide Linear Lid Kit Included
1 x linear lid 1210mm
5 x linear bridges
5 x height/level levellers

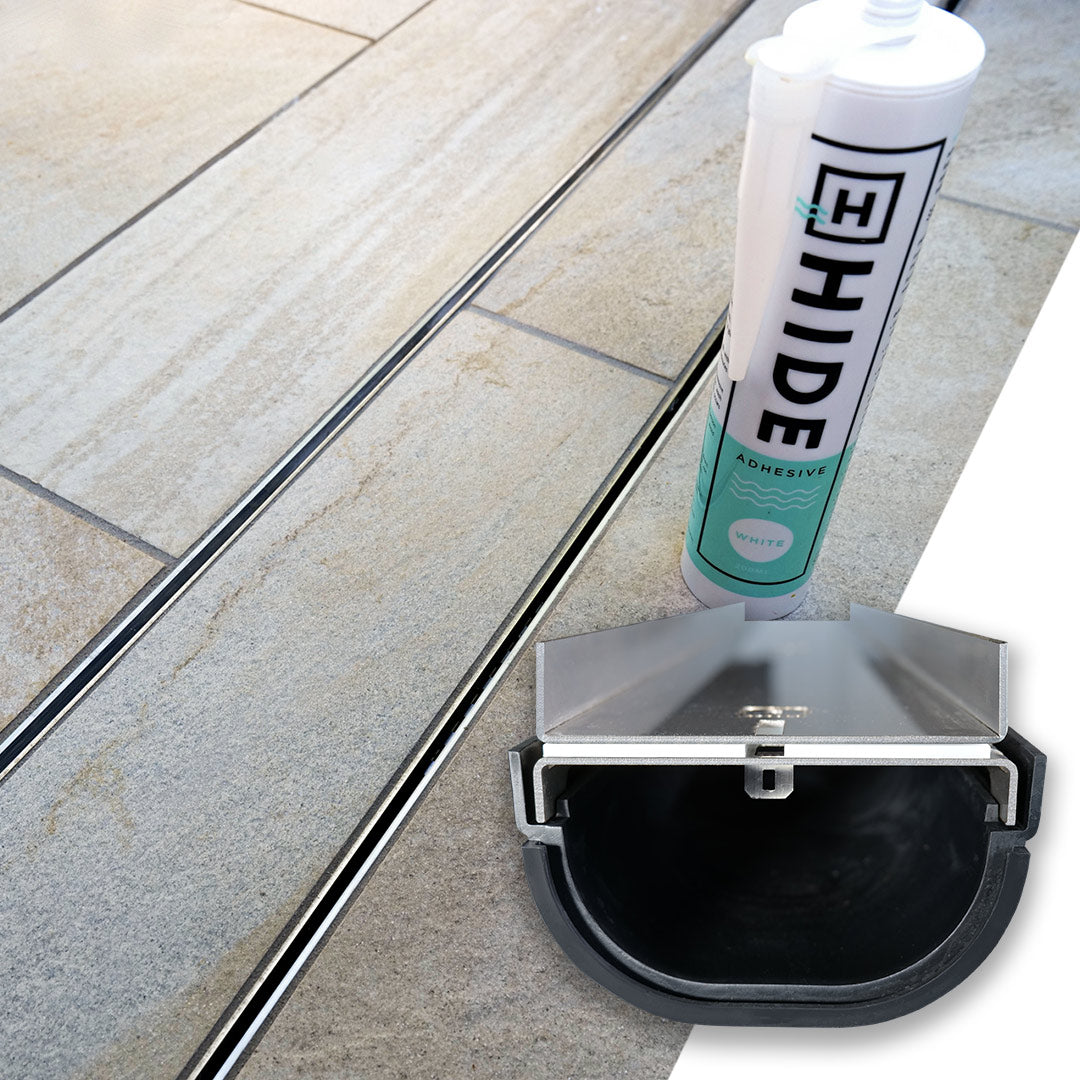

2 x adhesive
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Length |
1210mm |
| Inlay Thickness |
8-12, 15-22, 25-32, 35-42 |
| Material | 316L Marine-Grade Stainless Steel (known for exceptional durability and corrosion resistance) |
| Surface Exposure | Minimal—only 2 mm of stainless steel visible at the surface level, ensuring a discreet appearance |
| Compatibility | Compatible with Everhard Easy Drain (ED) and Reln Storm Mate (SM) channels (channels not included; must be sourced separately) |
| Installation Features |
Adjustable height and clearances; centralising tabs for precise alignment; no equipotential bonding required; flexible installation to match grout lines and tile patterns |
| Usage | Designed for pedestrian traffic only; not suitable for driveways |
| Maintenance | Easy to clean and remove; no grate to collect surface sediment; deep channel options allow limited fall requirements |
