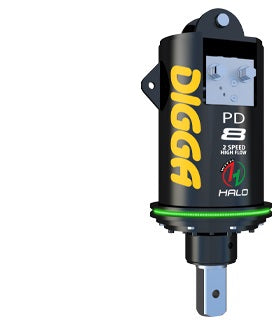

Product Description
Digga’s 2-speed drilling auger drives for high-flow machines are engineered to deliver exceptional versatility across a wide range of drilling applications. Featuring a high-speed, low-torque mode for smaller auger jobs that demand faster RPM, and a low-speed, high-torque mode for tackling large-diameter holes with power and precision it’s like having two auger drives in one compact, efficient unit.
These innovative two-speed auger drives are compatible with excavators, skid steer loaders, truck cranes, front-end loaders, wheeled loaders, and backhoes operating with flow rates between 40 and 180 lpm, making them a perfect choice for professionals seeking power, efficiency, and adaptability on the job site.
Features
Advanced motor design delivers enhanced performance with 2-speed functionality for maximum efficiency.
Low-speed, high-torque mode ideal for drilling large-diameter holes with power and precision.
High-speed, low-torque mode perfect for smaller holes requiring faster RPM and smoother operation.
Designed to perform in all ground conditions from soft, loose soils to hard and rocky terrain.
Equipped with an integrated PRV (Pressure Relief Valve) for superior protection and reliability.
Simple electrical setup with 12V or 24V coil that connects easily for quick installation.
Optional controls available, including joystick switches, floor-mounted switches, and pre-wired cigarette plug options for user convenience.
Low-maintenance design backed by a 5-year gearbox warranty and 3-year motor warranty for long-term peace of mind.
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Rec Flow Range |
40-150 lpm |
| Max Torque | 7881 Nm |
| Motor | 6k Geroler |
| Pressure Valve Fitted | Included |
| Energy Control Valve | Optional |
| Case Drain Required | Required |
| Max Pressure | Do not exceed 240 bar @ 150 lpm |
| Max Flow | Do not exceed 180 lpm @ 200 bar |
| Max Continuous Power | Do not exceed 60 Kw (80 hp) |
| Overall Length | 952 mm |
| Diameter | 340 mm |
| Weight (no frame / hitch) | 161 kg |
| Std Output Shaft | 75 mm Square |
| Swing Control | N/A |
| Diggalign | Optional |
| Halo | Optional |
| Rec Auger | 6 Series |
| Max Auger Dia Clay / Shale | 1000 mm |
| Max Auger Dia Earth | 1200 mm |
