Product Description

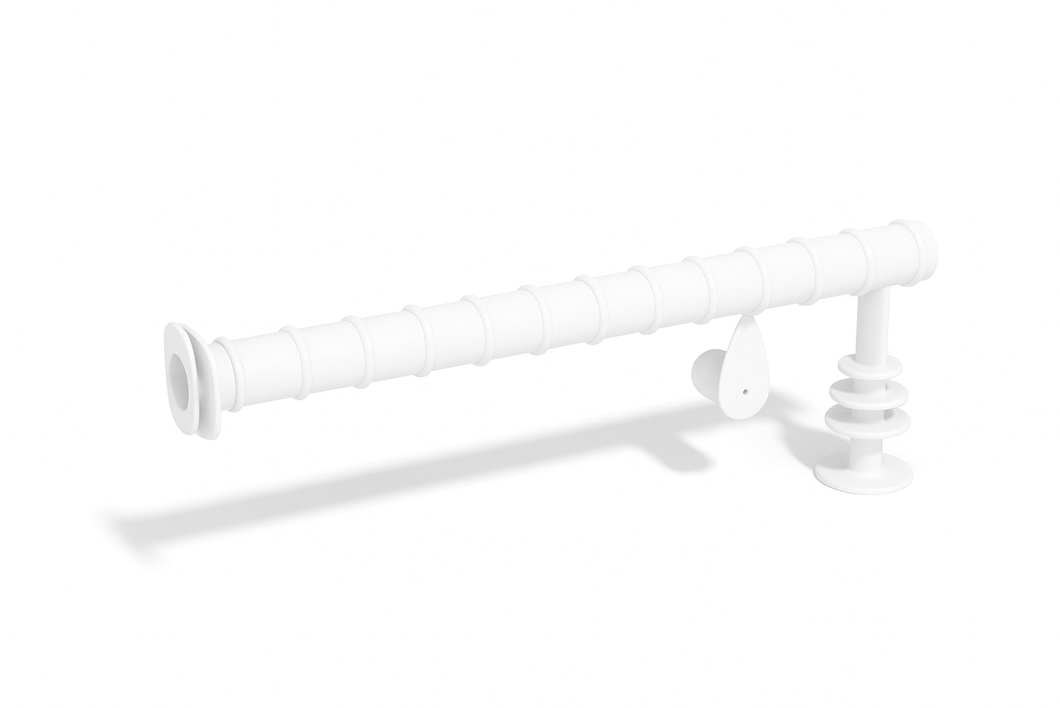

Connolly Universal Dowel Sleeves are designed for both round and square dowels, ensuring efficient load transfer across concrete slab-on-ground joints. These sleeves deliver reliable joint performance, making them ideal for commercial, industrial, and civil construction applications.
Each sleeve covers one half of the dowel, preventing bonding with the concrete to allow free movement. Connolly Universal Dowel Sleeves are engineered to accommodate expansion and contraction at joints.
Featuring a patented integrated support leg, the Universal Dowel Sleeve can be adjusted to suit a variety of slab thicknesses. This innovative design ensures accurate dowel alignment during installation, reducing the risk of slab failure or joint misalignment.
With the patented twist-fix connection, Connolly Universal Dowel Sleeves seamlessly integrate with Connolly Key Joints, Expansion Joints, and Straight Up Contraction Joints, offering a complete jointing solution for concrete slab construction.
Features
Connolly End Expansion Sleeve
10mm expansion capability
Suits 33mm round dowel
Provides load transfer across concrete joints
Ensures controlled movement in slab-on-ground applications
Helps minimise cracking and joint damage
Simple and efficient installation
Durable construction for long-term performance
Compatible with standard concrete dowel systems
Designed for reliable joint stability
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Pack Quantity |
100 per pack |
|
Dowel Size [mm] |
33 |
| Sleeve Length [mm] | 230 / 300 |
| Recommended dowel length [mm] | 450 / 600 |
| End expansion [mm] | 10 |
| Integrated Foot to suit slab [mm] | NA |
| Lateral Movement | No |
| Colour | White |
