Product Description
The Connolly Expansion Joint provides an efficient continuous pour solution for expansion joints in concrete slab-on-ground applications, ensuring durability and precision in construction.
Its straight profile design ensures that all load transfer occurs exclusively through the dowels, enhancing structural integrity and long-term performance.

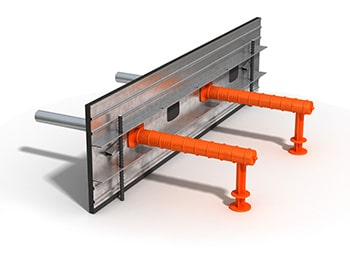

Manufactured from roll-formed galvanised steel with a 10mm cross-linked foam insert, Connolly Expansion Joints act as a reliable leave-in-place formwork, delivering flexibility for joint expansion. The system is secured on-site with Connolly’s patented peg and wedge installation method for quick and easy setup.

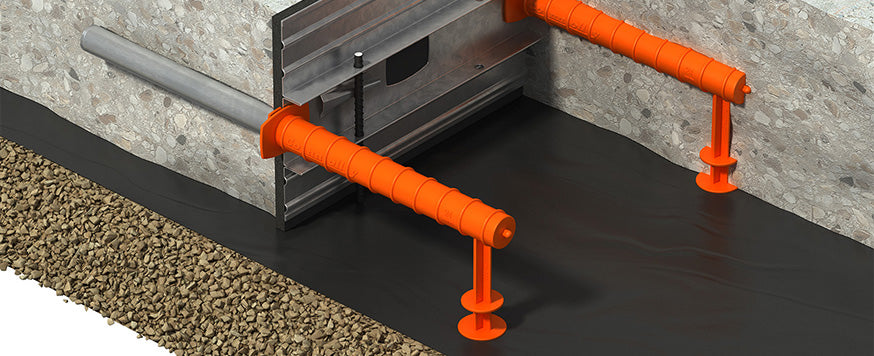

This expansion joint profile features pre-formed holes for compatibility with Connolly Universal Dowel Sleeves (UDS). Using the patented twist-fix system, the Universal Dowel Sleeves can be quickly fitted into the steel section. The holes are designed to accommodate round dowels up to 30mm in diameter and square dowels up to 24mm, making the system highly versatile.
Available in 3m lengths, the Connolly Expansion Joint suits a wide range of slab thicknesses from 100mm to 200mm, providing contractors with a practical and high-performance solution for concrete slab construction.
Features
Designed for continuous concrete pours, ensuring seamless slab-on-ground construction.
Accommodates up to 10mm joint expansion for reliable movement and crack control.
Available in four different profile heights to suit varying slab thicknesses.
Provides full-depth expansion capacity across the entire slab section.
Innovative twist-fix system ensures precise dowel alignment for smooth slab movement.
Features a patented wedge fixing mechanism for quick and accurate height adjustment.
Built with additional stiffening ribs for straighter, more stable joints.
Protected with a galvanised steel coating to prevent rust and extend service life.
Can be used as a screed guide, helping achieve the correct concrete level quickly.
Compatible with permanent capping and rebate moulds for enhanced installation efficiency.
SPECIFICATIONS:
| Additional Features | Details |
|---|---|
|
Description |
Expansion Joint System for 200mm slab |
| Expansion Joint | 6 per pack |
| Slab thickness [mm] | 200 |
| Profile heights [mm] | 190 |
| Foam heights [mm] | 200 |
| Length [m] | 3.00 |
| Dowel diameter [mm] | 24 |
| Dowel length [mm] | 450 |
| No of dowels / centres [mm] | 7 / 450 |
Request A Free Quote
Please fill out the below form for a nonobligatory written quote on a Connolly 200mm x 3.0m Expansion Joint with 10mm PE cross linked closed cell foam.
